The Cisco CRS Flexible PLIM is a next generation PLIM, which provides the flexibility and supports both: Cisco SPA (Shared Port Adapter) as well as integrated 10GE ports built into the PLIM itself. With four SPA bays available in the PLIM, those customers with any existing SPA install base can migrate their SPA infrastructure to CRS. With the CRS Flexible PLIM, the customers can also utilize built-in 6-ports of 10GE. These 6 x 10GE ports support multiple framing options including the OTN framing on top of the WAN and LAN PHY framing. Also, the 10GE ports will support Tunable DWDM optics, turning the 6-ports into 10GE IPoDWDM interfaces.
Network Adapters

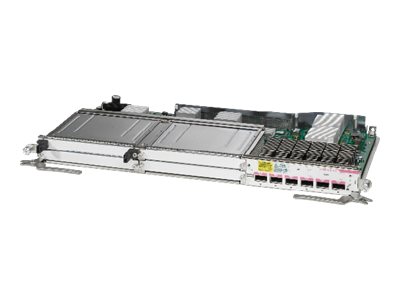

Cisco CRS Flexible SPA and 6-port 10GE PLIM – expansion module – 10Gb Ethernet x 6
Cisco CRS Flexible SPA and 6-port 10GE PLIM – Expansion module – 10Gb Ethernet x 6 – refurbished
146,499.00 د.إ
General |
---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 10Gb Ethernet x 6 |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Remote Management Protocol | SNMP |
Expansion / Connectivity |
Expansion Slots | 4 (total) / 4 (free) x expansion slot |
Interfaces | 6 x 10Gb Ethernet |
Compatible Slots | 1 x expansion slot |
Miscellaneous |
Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN50082, EN55024, EN55022 Class A, EN 61000-6-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GR-1089-CORE, EN 300 386 |
Pricing Type | Refurbished |
Dimensions & Weight |
Width | 1.8 in |
Depth | 11.2 in |
Height | 20.6 in |
Weight | 7.28 lbs |
Environmental Parameters |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 – 85% |
