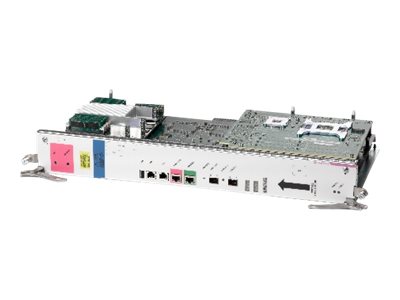

Cisco CRS Series 16-Slot Performance Route Processor – router – plug-in module
Tech overview
40,099.00 د.إ
The Cisco Carrier Routing System (CRS) performance route processor is the next-generation route processor for the Cisco CRS-1 and CRS-3 platforms. It is the first Cisco CRS route processor to offer the amazing speed of the Intel Xeon quad-core processor. With 12 GB of fast double data rate 3 (DDR3) error correcting code (ECC) memory, the performance route processor provides extremely fast routing performance at exceptional scale for the largest core and edge applications. The multicore design and speed allows you to achieve high levels scale for all applications such as Border Gateway Protocol (BGP) and Interior Gateway Protocols (IGP), Multiprotocol Label Switch Traffic Engineering (MPLS-TE), NetFlow, lawful intercept, Simple Network Management Protocol (SNMP) or XML monitoring without adversely affecting routing performance.
The CRS performance route processor runs the Cisco IOS XR Software, which is a fully modular, fully distributed Internet work operating system that uses a memory-protected, microkernel-based architecture and control-plane distribution that allows the system to scale.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, BGP-4, HSRP, VRRP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, CLI |
| Features |
| Non-Stop Forwarding (NSF), MPLS Fast Reroute (FRR) |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1, VCCI Class A, EN 300 386 |
| Processor | 1 x Intel Xeon 2.13 GHz |
| RAM | 12 GB DDR3 SDRAM |
| Hard Drive | 64 GB |
| Expansion / Connectivity |
| Interfaces | 1 x 10Base-T/100Base-TX – RJ-45 Ā¦ Management: 1 x console – RJ-45 Ā¦ Management: 1 x auxiliary – RJ-45 Ā¦ Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Ā¦ 2 x 1000Base-LX – LC single-mode Ā¦ USB: 2 x |
| Miscellaneous |
| Pricing Type | Refurbished |
| Dimensions & Weight |
| Width | 2.8 in |
| Depth | 11.2 in |
| Height | 20.6 in |
| Weight | 12.35 lbs |
