As metropolitan (metro) transport networks grow from 2.5-generation (2.5G) services to 10G and eventually 40G, the underlying optical systems need to compensate for the lower chromatic dispersion tolerances on the 10G and 40G interfaces. In optical networks, the dispersion compensation unit (DCU) compensates for accumulated chromatic dispersion effect in fiber. It provides a flexible solution for accumulated chromatic dispersion without dropping and regenerating the wavelengths on the link, a process that would otherwise be necessary when accumulated chromatic dispersion exceeds the maximum allowed dispersion tolerance.
Network Adapters

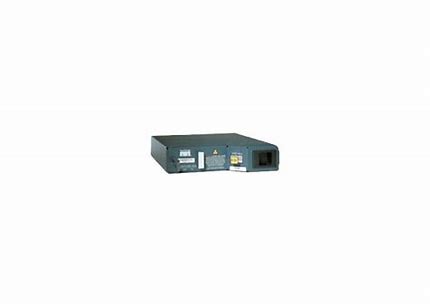

Cisco Dispersion Compensation Unit 1350 – expansion module 1
Cisco Dispersion Compensation Unit 1350 – Expansion module 1 – fiber optic – 1525-1565 nm – for ONS 15216, 15216 4-Channel, 15216 8-Channel
329,799.00 د.إ
General |
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 1 |
Connectivity Technology | Wired |
Cabling Type | Fiber optic |
Max Transfer Distance |
5.1 miles |
Optical Wave Length | 1525-1565 nm |
Expansion / Connectivity |
Interfaces | 1 x network – LC/UPC |
Dimensions & Weight |
Width | 8.2 in |
Depth | 9.8 in |
Height | 1.6 in |
Environmental Parameters |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 131 °F |
Humidity Range Operating | 95% (non-condensing) |
Compatibility Information |
Designed For | Cisco ONS 15216, 15216 4-Channel Optical Add/Drop Multiplexer, 15216 8-Channel CWDM Multiplexer/Demultiplexer Module, 15216 Optical Filter |
