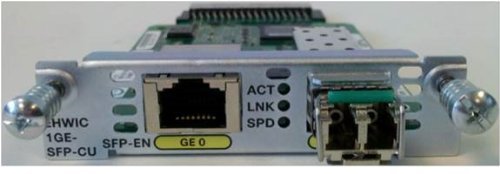

The Cisco Gigabit Ethernet dual-identity Enhanced High-speed WAN Interface Card (EHWIC) brings both Small Form-factor Pluggable (SFP) and copper (RJ-45) Gigabit Ethernet connectivity to Cisco Integrated Services Routers (ISRs) to accelerate applications such as Ethernet WAN access, inter-VLAN routing (IVR), and high speed connectivity to LAN switches.
The single-port Cisco Gigabit Ethernet EHWIC provides Gigabit Ethernet optical and copper connectivity in a compact form factor to the Cisco Integrated Service Router Generation 2 (ISR G2).
The Gigabit Ethernet EHWIC enables branch offices to cost-effectively use high-speed uplinks in numerous environments. The enhanced performance of Gigabit Ethernet in Cisco ISR G2 routers enables applications and services and provides greater capacity for existing IVR and bridging capabilities. Branch offices can connect to Ethernet WAN (EWAN) Layer 2 and 3 services.
| Networking | ||||
| Cabling Type: | Ethernet 1000Base-T , Ethernet 1000Base-X , Ethernet 100Base-TX , Ethernet 10Base-T | |||
| Compliant Standards: | IEEE 802.1p , IEEE 802.1Q , IEEE 802.2 , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3x , IEEE 802.3z | |||
| Connectivity Technology: | Wired | |||
| Data Link Protocol: | Ethernet , Fast Ethernet , Gigabit Ethernet | |||
| Data Transfer Rate: | 1 Gbps | |||
| Features: | Access Control List (ACL) support , Cisco Gigabit EtherChannel , Committed Access Rate (CAR) , Flow control , Jumbo Frames support , MAC address filtering , Quality of Service (QoS) , VLAN support , Weighted Random Early Detection (WRED) | |||
| Form Factor: | Plug-in module | |||
| Interface Type: | EHWIC | |||
| Remote Management Protocol: | RMON , SNMP | |||
| Type: | Expansion module | |||
|
|
||||
| Miscellaneous | ||||
| Compliant Standards: | EN 61000-3-2 , EN 61000-3-3 , EN300-386 , EN55022 Class A , FCC Part 15 A , ICES-003 Class A , VCCI Class A ITE | |||
|
|
||||
| Interface Provided | ||||
| Connector Type: | RJ-45 | |||
| Interface: | Ethernet 10Base-T/100Base-TX/1000Base-T | |||
| Qty: | 1 | |||
|
|
||||
| Environmental Parameters | ||||
| Humidity Range Operating: | 10 – 90% (non-condensing) | |||
| Max Operating Temperature: | 104 °F | |||
| Min Operating Temperature: | 32 °F | |||
|
|
||||
| Header | ||||
| Brand: | Cisco | |||
| Compatibility: | PC | |||
| Manufacturer: | Cisco Systems | |||
| Packaged Quantity: | 1 | |||
| Product Line: | Cisco | |||
|
|
||||
| Slot Provided | ||||
| Total Qty: | 1 | |||
|
|
||||
| Slot Required | ||||
| Total Qty: | 1 | |||
| Type: | EHWIC | |||
|
|
||||
| Dimensions & Weight | ||||
| Depth: | 4.8 in | |||
| Height: | 0.8 in | |||
| Width: | 3.1 in | |||
|
|
||||
| Expansion Slots | ||||
| Type: | SFP | |||
|
|
||||
| Miscellaneous (CDW) | ||||
| Compatible With: |
Cisco 1921
Cisco 1921 4-pair G.SHDSL bundle
Cisco 1921 ADSL2+ Annex M Bundle
Cisco 1921 ADSL2+ Bundle
Cisco 1921 SEC T1 Bundle
Cisco 1941
Cisco 1941 Mobile Wireless
Cisco 1941 Secure WAAS Bundle
Cisco 1941 Security
Cisco 1941 Security Bundle
Cisco 1941 SRE Bundle
Cisco 1941 WAAS Bundle
Cisco 2901
Cisco 2901 Secure WAAS Bundle
Cisco 2901 Security Bundle
Cisco 2901 SRE Bundle
Cisco 2901 Terminal Server Bundle
Cisco 2901 Voice Bundle
Cisco 2901 Voice Security and CUBE Bundle
Cisco 2901 Voice Security Bundle
Cisco 2901 WAAS Bundle
Cisco 2911
Cisco 2911 Secure WAAS Bundle
Cisco 2911 Security Bundle
Cisco 2911 SRE Bundle
Cisco 2911 UCSE Bundle
Cisco 2911 Voice Bundle
Cisco 2911 Voice Security and CUBE Bundle
Cisco 2911 Voice Security Bundle
Cisco 2911 WAAS Bundle
Cisco 2921
Cisco 2921 Secure WAAS Bundle
Cisco 2921 Security Bundle
Cisco 2921 SRE Bundle
Cisco 2921 Voice Bundle
Cisco 2921 Voice Security and CUBE Bundle
Cisco 2921 Voice Security Bundle
Cisco 2921 WAAS Bundle
Cisco 2951
Cisco 2951 Secure WAAS Bundle
Cisco 2951 Security Bundle
Cisco 2951 SRE Bundle
Cisco 2951 Voice Bundle
Cisco 2951 Voice Security and CUBE Bundle
Cisco 2951 Voice Security Bundle
Cisco 2951 WAAS Bundle
Cisco 3925
Cisco 3925 Security Bundle
Cisco 3925 SRE Bundle
Cisco 3925 Voice Bundle
Cisco 3925 Voice Security and CUBE Bundle
Cisco 3925 Voice Security Bundle
Cisco 3925 WAAS Bundle
Cisco 3925E
Cisco 3925E Security Bundle
Cisco 3925E SRE Bundle
Cisco 3925E Voice Bundle
Cisco 3925E Voice Security and CUBE Bundle
Cisco 3925E Voice Security Bundle
Cisco 3945
Cisco 3945 PSRE Bundle
Cisco 3945 Security Bundle
Cisco 3945 SRE Bundle
Cisco 3945 Voice Bundle
Cisco 3945 Voice Security and CUBE Bundle
Cisco 3945 Voice Security Bundle
Cisco 3945 WAAS Express Bundle
Cisco 3945E
Cisco 3945E Security Bundle
Cisco 3945E SRE Bundle
Cisco 3945E Voice Bundle
Cisco 3945E Voice Security and CUBE Bundle
Cisco 3945E Voice Security Bundle
|
|||
| Weight | 0.91 kg |
|---|---|
| Dimensions | 4.8 × 3.1 × 0.8 cm |
