Routers
Cisco Embedded Services Router 6300 – router – plug-in module
Tech overview

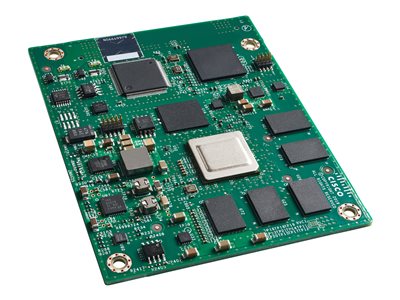

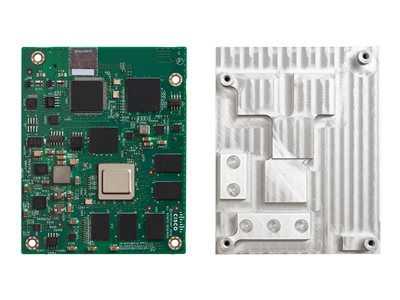

Cisco Embedded Services Router 6300 – Router – 4-port switch – GigE, PC/104 – WAN ports: 2 – plug-in module
AED20,299.00
The Cisco ESR6300 Embedded Series Router enables third party system integrators to build custom Gigabit Ethernet Routing solutions. The ESR6300 is optimized for size, weight and power to fully operate in extreme harsh environments. With Cisco IOS XE, it provides highly secure data, voice, and video communications to stationary and mobile network nodes.
| General | |
|---|---|
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | |
|---|---|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PC/104 |
| Performance | |
|---|---|
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | |
|---|---|
| Network / Transport Protocol | L2TP, RSVP, IPSec, FTP, DHCP, DDNS, RTP, HTTP, HTTPs, IPv6, cRTP |
| Routing Protocol | |
|---|---|
| Routing Protocol | RIP-1, RIP-2, BGP, EIGRP, NHRP, OSPFv2, GRE, OSPFv3, static IPv6 routing, policy-based routing (PBR), STP, MGRE |
| Remote Management Protocol | |
|---|---|
| Remote Management Protocol | Telnet |
| Encryption Algorithm | |
|---|---|
| Encryption Algorithm | SSL, PKI, 256-bit AES, 512-bit SHA, 384-bit SHA |
| Features | |
|---|---|
| NAT support | Yes |
| Hardware Encryption | Yes |
| DiffServ support | Yes |
| Low-latency queuing (LLQ) | Yes |
| Class-Based Weighted Fair Queuing (CBWFQ) | Yes |
| Weighted Fair Queuing (WFQ) | Yes |
| Access Control List (ACL) support | Yes |
| Quality of Service (QoS) | Yes |
| Dynamic Multipoint VPN (DMVPN) | Yes |
| DHCP server | Yes |
| Virtual Route Forwarding-Lite (VRF-Lite) | Yes |
| DNS proxy | Yes |
| DHCP relay | Yes |
| DHCP client | Yes |
| Rugged | Yes |
| Virtual Routing and Forwarding (VRF) | Yes |
| Class of Service (CoS) | Yes |
| DiffServ Code Point (DSCP) support | Yes |
| Control plane protection (CoPP) | Yes |
| Failover protection | Yes |
| Hierarchical Quality of Service (HQoS) | Yes |
| Class-Based Traffic Shaping (CBTS) | Yes |
| Class-Based Traffic Policing (CBTP) | Yes |
| Class-Based Weighted Random Early Detection (CBWRED) | Yes |
| DNS spoofing | Yes |
| Compliant Standards | |
|---|---|
| Compliant Standards | IEEE 802.1D, CISPR 24, EN55024, FCC CFR47 Part 15, IEC 60950-1, MIL-STD-810, MIL-STD-810F, CNS13438:2006, IEC 61850-3, EN 55024:2010, IEEE 1613, EN 300 386, KN35, EN 55032:2012, UL/CSA60950-1, IEC 62368-1, EN 55032:2015, CISPR 32:2012, UL 62368-1, TCVN 7317, CISPR 35, VCCI-CISPR 32:2016, CISPR 32:2015, EN 55035:2017, EN 61850-3, QCVN, CSA 62368-1, KN32:2015, IEC 68000-2-32 |
| RAM | |
|---|---|
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | |
|---|---|
| Flash Memory | 4 GB |
| Expansion / Connectivity | |
|---|---|
| Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 <br> LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 <br> Console: 1 x <br> Serial: 1 x <br> Storage: 1 x <br> Alarm: |
| Power | |
|---|---|
| Power Consumption Operational | 12 Watt |
| Miscellaneous | |
|---|---|

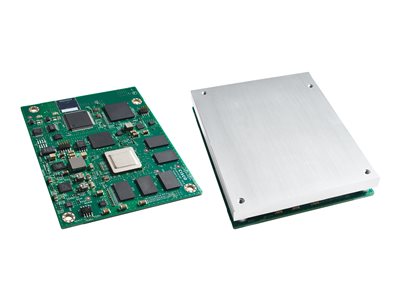

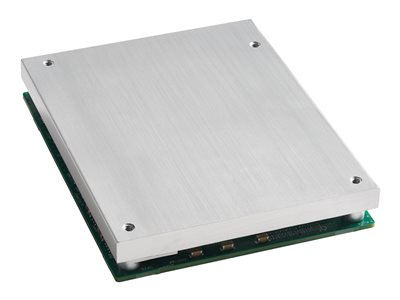

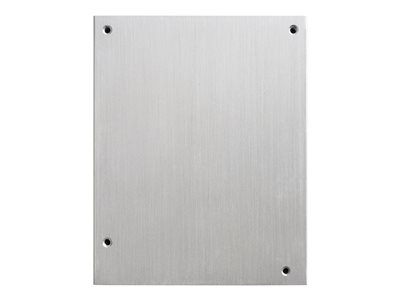

| Included Accessories | Cooling plate |
| Dimensions & Weight | |
|---|---|
| Width | 3.8 in |
| Height | 3 in |
