Cisco Firepower 2110 NGFW Appliance
|
FPR2110-NGFW-K9 Overview
The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The seriesā firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform.Ā The FPR2110-NGFW-K9 stands for Cisco Firepower 2110 NGFW Appliance, 1RU.
Quick Spec

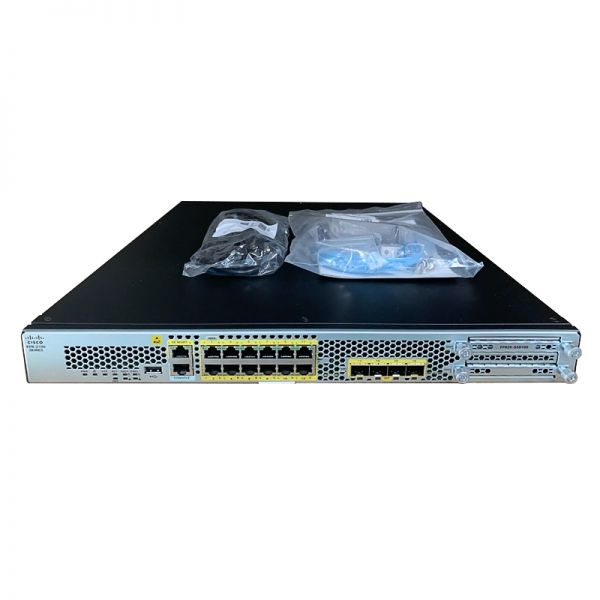

Figure 1 shows the appearance of FPR2110-NGFW-K9.
Table 1 shows the quick spec.
| ProductĀ Number | FPR2110-NGFW-K9 |
| Product Description | Cisco Firepower 2110 NGFWĀ Appliance, 1RU |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU |
| I/O module slots | 0 |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
| Network modules | None |
| Maximum number of interfaces | Up to 16 total Ethernet ports (12x1GĀ RJ-45, 4x1G SFP) |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 Type-A (500mA) |
| Storage | 1x 100 GB, 1x spare slot (forĀ MSP) |
Product Details
Figure 2 shows theĀ front panelĀ ofĀ FPR2110-NGFW-K9.
Ā
Note:
| ā | Power LED |
| ā” | Locator beacon |
| ā¢ | System LEDs |
| ā£ | Type A USB 2.0 port |
| ā¤ | RJ-45 console port |
| ā„ | Gigabit Ethernet management port:
lĀ Firepower Threat DefenseāManagement 0 (also referred to as Management 1/1 and Diagnostic 1/1) lĀ ASAāManagement 1/1 |
| ā¦ | 12 RJ-45 1G/100M/10M auto duplex/auto MDI-X Base-T ports
Ethernet 1/1 through 1/12 labeled top to bottom, left to right |
| ā§ | Pullout label card with chassis serial number |
| āØ | 4 fixed SFP (1G) ports
Fiber ports 1/13 through 1/16 labeled left to right |
| ā© | SSD (slot 1) |
| āŖ | SSD (slot 2) |
FigureĀ 3Ā shows theĀ rear panelĀ ofĀ FPR2110-NGFW-K9.
Ā
Note:
| ā | Power on/off switch |
| ā” | Fixed power supply module |
| ā¢ | Fixed fans |
| ā£ | 2-post grounding lug |
Compare to Similar Items
TableĀ 2Ā shows the comparison betweenĀ FPR2110-NGFW-K9Ā andĀ FPR2130-NGFW-K9.
| ProductĀ Number | FPR2110-NGFW-K9 | FPR2130-NGFW-K9 |
| Product Description | Cisco Firepower 2110 NGFWĀ Appliance, 1RU | Cisco Firepower 2130 NGFWĀ Appliance, 1RU |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU | 1RU |
| I/O module slots | 0 | 1 NM slot |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Network modules | None | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
| Maximum number of interfaces | Up to 16 total Ethernet ports (12x1GĀ RJ-45, 4x1G SFP) |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
| Storage | 1x 100 GB, 1x spare slot (forĀ MSP) | 1x 200 GB, 1x spare slot (for MSP) |
FPR2110-NGFW-K9 Specification
FPR2110-NGFW-K9Ā Specification |
||
| Product Number | FPR2110-NGFW-K9 | |
| Product Description | Cisco Firepower 2110 NGFW Appliance, 1RU | |
|
Hardware Specifications |
||
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | |
| Form factor (rack units) | 1RU | |
| I/O module slots | 0 | |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces | |
| Network modules | None | |
| Maximum number of interfaces | Up to 16 total Ethernet ports (12x1GĀ RJ-45, 4x1G SFP) |
|
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) | |
| Serial port | 1 x RJ-45 console | |
| USB | 1 x USB 2.0 Type-A (500mA) | |
| Storage | 1x 100 GB, 1x spare slot (forĀ MSP) | |
| Power supplies | Configuration | Single integrated 250W AC power supply. |
| AC input voltage | 100 to 240V AC | |
| AC maximum input current | < 2.7A at 100V | |
| AC maximum output power | 250W | |
| AC frequency | 50 to 60 Hz | |
| AC efficiency | >88% at 50% load | |
| Redundancy | None | |
| Fans | 4 integrated (2 internal, 2 exhaust) fans | |
| Noise | 56 dBA @ 25C
74 dBA at highest system performance. |
|
| Rack mountable | Yes. Fixed mount brackets included (2-post). Mount rails optional (4-post EIA-310-D rack) |
|
| Weight | 16.1 lb (7.3 kg): with 2x SSDs | |
| Temperature: operating | 32 to 104Ā°F (0 to 40Ā°C) | |
| Temperature: nonoperating | -4 to 149Ā°F (-20 to 65Ā°C) | |
| Humidity: operating | 10 to 85% noncondensing | |
| Humidity: nonoperating | 5 to 95% noncondensing | |
| Altitude: operating | 10,000 ft (max) | |
| Altitude: nonoperating | 40,000 ft (max) | |
