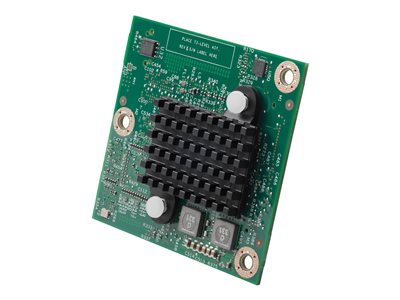

Cisco Fourth-Generation 32-Channel High-Density Packet Voice Digital Signal Processor Module – voice DSP module – TAA Compliant
Cisco Fourth-Generation 32-Channel High-Density Packet Voice Digital Signal Processor Module – Voice DSP module – TAA Compliant – for Cisco 4451-X
AED7,799.00
The PVDM4 modules are supported on the Cisco 4451-X platform. You can plug them directly into the single slot on the router motherboard or onto the network interface module (NIM) that supports T1/E1 ports. Enhanced DSP architecture accommodates a packet-processing engine optimized for rich-media voice applications, while concurrently supporting the time-division multiplexing IP (TDM-IP) voice framework. A PVDM4 module plugged onto the motherboard delivers IP-based voice services such as conferencing, media optimization, and transcoding. A PVDM4 module plugged onto the NIM daughter card would be used for voice T1/E1 connectivity. All the PVDM4 modules have the same form factor and are field-upgradable to allow you to easily scale your voice deployments.
| General |
|---|
| Device Type | Voice DSP module |
| Form Factor | Plug-in module |
| Bus Voltage | 3.3 V |
| Networking |
| Connectivity Technology | Wired |
| Compliant Standards | G.711, G.729a, G.729ab, G.726, G.722, G.728, G.729, G.729b |
| Processor / Memory |
| RAM | 512 MB |
| Miscellaneous |
| Compliant Standards | CISPR 22 Class B, CISPR 24, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN50082-1, EN55022 Class B, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC CFR47 Part 15 B, GB 4943, EN 60950-1 Second Edition, NOM-019-SCFI-1998, EFTA, CAN/CSA-C22.2 No. 60950-1 |
| TAA Compliant | Yes |
| Power |
| Power Consumption Operational | 4.85 Watt |
| Dimensions & Weight |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 0.7 in |
| Weight | 1.27 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Compatibility Information | Designed For |
| Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle |
