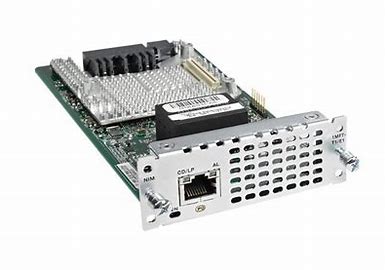

Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module – expansion module – T1/E1 x 2 – TAA Compliant

Add to Wishlist

Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module – Expansion module – T1/E1 x 2 – T-1/E-1 – TAA Compliant – for Cisco 4451-X; Integrated Services Router 4321, 4331, 4351, 4431

20,799.00 د.إ

Add to Wishlist

The Cisco Fourth-Generation T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4451-X integrated services routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide unparalleled flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.

The T1/E1 modules contain an onboard Cisco Packet Voice Digital Signal Processor Module 4 (PVDM4) slot, which requires a fourth-generation PVDM4 module. A PVDM4 on the T1/E1 module is necessary for the voice features. The PVDM4 also provides for echo cancellation of up to 128-ms echo-tail length for demanding network conditions.

SKU: NIM-2CE1T1-PRI++= 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports T1/E1 x 2
Connectivity Technology Wired
Data Transfer Rate 2.048 Mbps
Remote Management Protocol SNMP, Telnet
Line Rate T-1/E-1
Line Coding Format AMI, B8ZS, HDB3
Status Indicators Carrier detect, alarm
Features Integrated CSU/DSU
Compliant Standards G.703
Expansion / Connectivity
Interfaces 2 x T1/E1
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS 60950, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE, EN 55022 Class A
TAA Compliant Yes
Dimensions & Weight
Width 3.5 in
Depth 7.2 in
Height 1.3 in
Weight 6.74 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 85% (non-condensing)
Compatibility Information
Designed For Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle; Cisco Integrated Services Router 4321, 4331, 4351, 4431
