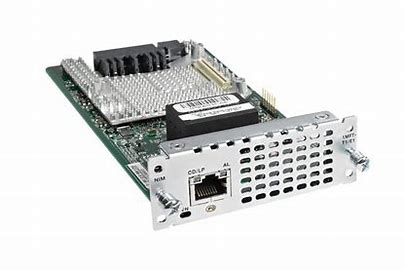

Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module – expansion module – T1/E1 x 4


Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module – Expansion module – T1/E1 x 4 – T-1/E-1 – for P/N: ISR4321-PM20, ISR4331-PM20, ISR4351-PM20, ISR4431-PM20, ISR4461-K9-CAP, ISR4461-PM20

18,299.00 د.إ

The Cisco Fourth-Generation T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4451-X integrated services routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide unparalleled flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface.

The T1/E1 modules contain an onboard Cisco Packet Voice Digital Signal Processor Module 4 (PVDM4) slot, which requires a fourth-generation PVDM4 module. A PVDM4 on the T1/E1 module is necessary for the voice features. The PVDM4 also provides for echo cancellation of up to 128-ms echo-tail length for demanding network conditions.

SKU: NIM-4MFT-T1/E1 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports T1/E1 x 4
Connectivity Technology Wired
Data Transfer Rate 2.048 Mbps
Remote Management Protocol SNMP, Telnet
Line Rate T-1/E-1
Line Coding Format AMI, B8ZS, HDB3
Status Indicators Carrier detect, alarm
Features Integrated CSU/DSU
Expansion / Connectivity
Interfaces 4 x T1/E1
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS 60950, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE
Dimensions & Weight
Width 3.5 in
Depth 7.2 in
Height 1.3 in
Weight 7.05 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 85% (non-condensing)
Compatibility Information
Designed For P/N: ASR1001-X, ASR1001X-10G-K9, ASR1001X-10G-SEC, ASR1001X-10G-VPN, ASR1001X-2.5G-K9, ASR1001X-2.5G-SEC, ASR1001X-2.5G-VPN, ASR1001X-20G-K9, ASR1001X-20G-K9-RF, ASR1001X-20G-SEC, ASR1001X-20G-VPN, ASR1001X-5G-K9, ASR1001X-5G-SEC, ASR1001X-5G-VPN, ASR1001X-AES-AX, ASR1001X-AIS-AX, C1-ASR1001-X/K9, C1-CISCO4321/K9, C1-CISCO4331/K9, C1-CISCO4351/K9, C1-CISCO4431/K9, C1-CISCO4451/K9, ENCS5406/K9, ENCS5408/K9, ENCS5412/K9, ISR4321/K9, ISR4321/K9-RF, ISR4321-AX/K9, ISR4321-AXV/K9, ISR4321-DNA, ISR4321-PM20, ISR4321-SEC/K9, ISR4321-SEC/K9-RF, ISR4321-V/K9, ISR4321-VSEC/K9, ISR4321-VSEC/K9-RF, ISR4331/K9, ISR4331/K9-RF, ISR4331-AX/K9, ISR4331-AX/K9-RF, ISR4331-AXV/K9, ISR4331-DC/K9, ISR4331-DNA, ISR4331-PM20, ISR4331-SEC/K9, ISR4331-V/K9, ISR4331-V/K9-RF, ISR4331-VSEC/K9, ISR4351/K9, ISR4351-AX/K9, ISR4351-AXV/K9, ISR4351-DNA, ISR4351-PM20, ISR4351-SEC/K9, ISR4351-V/K9, ISR4351-VSEC/K9, ISR4431/K9, ISR4431/K9-RF, ISR4431-AX/K9, ISR4431-AXV/K9, ISR4431-DNA, ISR4431-PM20, ISR4431-SEC/K9, ISR4431-V/K9, ISR4431-V/K9-RF, ISR4431-VSEC/K9, ISR4451-DNA, ISR4451-PM20, ISR4451-X/K9, ISR4451-X-AX/K9, ISR4451-X-AXV/K9, ISR4451-X-SEC/K9, ISR4451-X-V/K9, ISR4451-X-VSEC/K9, ISR4461/K9, ISR4461-K9-CAP, ISR4461-PM20, VG450-144FXS/K9, VG450-72FXS/K9
