The Cisco High-Density Analog Voice Service Modules provide enterprises, managed services providers, and service providers the ability to directly connect public-switched telephone networks and existing telephony equipment to compatible routers.
Network Adapters

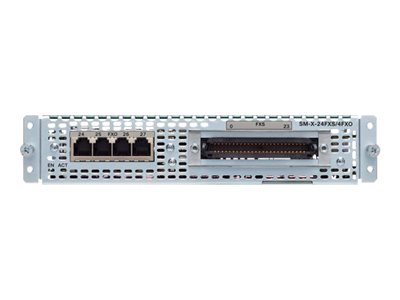

Cisco High-Density Analog Voice Service Module SM-X-24FXS/4FXO – expansion module – FXS x 24 + FXO x 4
Cisco High-Density Analog Voice Service Module SM-X-24FXS/4FXO – Expansion module – FXS x 24 + FXO x 4 – for Cisco 4451, 4451-X; Integrated Services Router 4331, 4351
37,599.00 د.إ
General |
---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | FXS x 24 + FXO x 4 |
Connectivity Technology | Wired |
Network / Transport Protocol | DHCP, DNS, RTP, RTCP |
Remote Management Protocol | SNMP, Telnet, HTTP, TFTP |
Status Indicators | Status |
Features | RADIUS support, Digital Signal Processing, HSRP support, OIR support, FXS-E (extended loops) support, FXO failover bypass ports |
Compliant Standards | G.711, G.729a, G.726 |
Expansion / Connectivity |
Interfaces | 24 x FXS – RJ-21 ¦ 4 x FXO – RJ-11 |
Miscellaneous |
Compliant Standards | NEBS level 3, CISPR 22 Class A, CISPR 22 Class B, CISPR 24, EN55024, EN50082-1, EN55022 Class B, EN 61000-6-1, AS/NZS 60950-1, CS-03, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, TBR21, AS/NZS 3548 Class A, VCCI V-3, TIA/EIA/IS-968, GR-1089-CORE, GR-63-CORE, CNS 13438, ICES-003 issue 4, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1, ES 201 970, GR-78-CORE |
Power |
Power Consumption Operational | 79.37 Watt |
Dimensions & Weight |
Width | 7.4 in |
Depth | 7.6 in |
Height | 1.6 in |
Weight | 33.86 oz |
Environmental Parameters |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Compatibility Information |
Designed For | Cisco 4451, 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle ¦ Cisco Integrated Services Router 4331, 4351 |
