Cisco High-Gain Omnidirectional Antenna for N-Type Connectors
Cisco High-Gain Omnidirectional Antenna for N-Type Connectors

Cisco High-Gain Omnidirectional Antenna for N-Type Connectors

Availability:

10 in stock
Add to Wishlist

389.00 د.إ

10 in stock

Add to Wishlist

Highlights

• Improves signal strength to increase range and provide coverage in hard-to-reach areas

• Weatherproof, lightning-protected casing for safe deployment on the exterior of your building

• Easy installation, with no software or configuration required

Product Overview

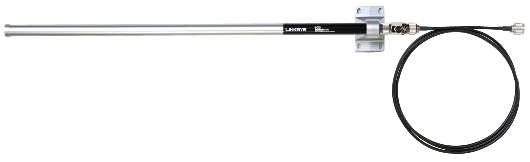

Use the Cisco® HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors (Figure 1) to increase the range of your wireless network. Attach the antenna to the exterior access point to increase both the effective strength of the outgoing signals and the receive sensitivity of the incoming signals.

The added signal strength and sensitivity also improve midrange communication reliability, because every packet comes through loud and clear, reducing retransmissions due to weak signal reception.

The 9-dBi signal strength allows the signals to travel farther and provides better signal detection in a 360-degree radius.

The weatherproof housing is able to withstand harsh outdoor conditions. The antenna also includes a lightning surge protector, mounting kit, and cable.

Features

• National Electrical Manufacturers Association (NEMA) rated, lightning-protected, weatherproof housing

• 9-dBi omnidirectional antenna gives clients unconstrained access

• Easy to install – no configuration necessary

Specifications

Specifications

Ports

1 N-type female connector

Cabling type

Coax: 50-ohm impedance

Electrical Specifications

Frequency range

2400 MHz to 2500 MHz

Gain

9 dBi

Voltage standing wave ratio (VSWR)

1.92 : 1 max

Polarization

Linear, vertical

Half-power beamwidth (HPBW): horizontal

360º

HPBW: vertical

11º

Maximum power

4W

Impedance

50 ohms

Range

Maximum outdoor range:* 120 m (0.078 mi) at 54 Mbps, 880 m (0.55 mi) at 11 Mbps
*Range estimation is based on 1 Cisco WAP200E Access Point with Cisco HGA9N antenna connecting to wireless client with 0-dBi antenna under ideal line-of-sight conditions

Environmental

Dimensions

W x H x D

2.95 x 24.61 x 2.20 in.

(75 x 625 x 56 mm)

Unit weight

0.44 lb (0.2 kg)

Mounting options

Mounting kit provided

Certification

FCC, IC

Operating temperature

-22° to 176°F (-30° to 80°C)

Storage temperature

-22° to 176°F (-30° to 80°C)

Operating humidity

5% to 95% noncondensing

Storage humidity

5% to 95% noncondensing

Package Contents

• Antenna body

• Antenna cable

• Lightning protector

• User guide on CD

• Quick installation guide

Minimum Requirements

• Cisco WAP200E Access Point

Product Warranty

90-day limited hardware warranty with return to factory replacement
