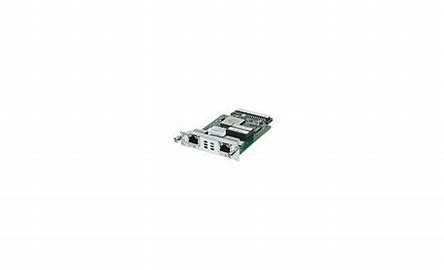

Cisco High-Speed Channelized T1/E1 and ISDN PRI – ISDN terminal adapter – PRI
Cisco High-Speed Channelized T1/E1 and ISDN PRI – ISDN terminal adapter – HWIC – ISDN PRI – 2.048 Mbps – T-1/E-1 – digital ports: 1 (32 channels) – for Cisco 2811 2-pair, 28XX, 28XX 4-pair, 28XX V3PN, 29XX, 38XX, 38XX V3PN, 39XX, 39XX ES24
12,299.00 د.إ
The Cisco Channelized T1/E1 and ISDN PRI High-Speed WAN Modules combine multiple T1/E1 WAN connectivity-Channelized T1/E1 and ISDN Primary Rate Interface (PRI), in the same card. With flexible WAN connectivity options, together with integrated routing, security, voice, and wireless capabilities, Cisco Integrated Services Routers can meet every need of enterprise-class branch offices today and in the future. The integrated channel service unit/data service unit (CSU/DSU) function allows customers to consolidate customer premises equipment (CPE).
The 1- and 2-port Channelized T1/E1 and ISDN PRI HWICs are updated versions of the E1/T1 ISDN PRI network modules, with the same functions and performance in a compact form factor of HWIC. You can save the network module slots for other LAN/WAN connectivity, and your deployment flexibility is greatly enhanced.
| General |
|---|
| Device Type | ISDN terminal adapter |
| Form Factor | Internal |
| Modem | HWIC |
| Connectivity Technology | Wired |
| Max Transfer Rate | 2.048 Mbps |
| ISDN Interface | ISDN PRI |
| Digital Ports Qty | 1 |
| Multiplexed Channels Qty | 32 |
| Line Rate | T-1/E-1 |
| Expansion / Connectivity |
| Interfaces | 1 x modem – ISDN PRI – RJ-48C |
| Compatible Slots | 1 x HWIC |
| Dimensions & Weight |
| Width | 3.1 in |
| Depth | 4.7 in |
| Height | 0.7 in |
| Weight | 2.82 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% |
| Compatibility Information | Designed For Cisco 2811, 2821, 2851, 2911, 2921, 2951, 3825, 3845, 3925, 3925E, 3945 |
