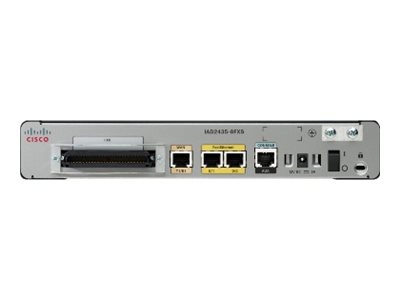

Cisco IAD 2435-8FXS Business Class Integrated Access Device – router – desktop
Tech overview
6,199.00 د.إ
The Cisco IAD2435-8FXS Integrated Access Device is part of the Cisco IAD2400 series of smart integrated access devices. These devices offer best-in-class customer premises equipment (CPE) to service providers delivering managed, integrated voice and data services to small and medium-sized businesses (SMB).
The Cisco IAD2435-8FXS is a secure, cost-effective device that can help accelerate migration from traditional time-division multiplexing (TDM) voice to voice over IP (VoIP) by supporting quality of service (QoS) and IP service-level agreements (IP SLAs). A quiet, space-saving desktop form factor makes it ideal for small business deployments.
The Cisco IAD2435-8FXS supports both analog voice and VoIP, with multiple call-control protocols, including Session Initiation Protocol (SIP), Media Gateway Control Protocol (MGCP), and H.323, along with diverse VoIP codecs.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Desktop – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES |
| Features | DHCP support, NAT support, wall mountable |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, EN 60950-1, FCC Part 15 A, EN 300 386 |
| RAM | 256 MB (installed) / 256 MB (max) |
| Flash Memory | 128 MB (installed) / 128 MB (max) |
| Line Properties |
| Line Rate | T-1/E-1 |
| IP Telephony |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | H.323, MGCP, SIP |
| Voice Codecs | G.729a, G.711u, G.711a, G.726 |
| Telephony Interfaces | 8 phone (FXS) |
| Expansion / Connectivity |
| Interfaces | 2 x 10Base-T/100Base-TX – RJ-45 ¦ Phone line: 8 x FXS – 50 pin Telco ¦ Serial: 1 x auxiliary – RJ-45 ¦ WAN: 1 x T1/E1 – RJ-48 |
| Power |
| Power Device | External power adapter – 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight |
| Width | 10.3 in |
| Depth | 8.1 in |
| Height | 1.7 in |
| Weight | 3.31 lbs |
