Cisco Industrial Ethernet 4000 Series – switch – 16 ports – managed – TAA Compliant

Add to Wishlist

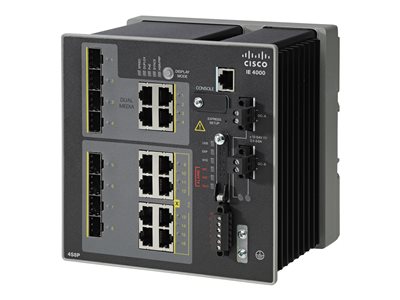

Cisco Industrial Ethernet 4000 Series – Switch – managed – 4 x Gigabit SFP + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP – DIN rail mountable – PoE+ – DC power – refurbished – TAA Compliant

AED23,499.00

Add to Wishlist

The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

SKU: IE40004GS8GP4GE-RF Category: Tag:
Enclosure Type DIN rail mountable
Subtype Gigabit Ethernet
Ports 4 x Gigabit SFP + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
Capacity Virtual interfaces (VLANs): 1000 | IGMP groups: 1000
MAC Address Table Size 16K entries
Routing Protocol OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Authentication Method RADIUS, TACACS+
Features DHCP support, NAT support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DOM support, DHCP server, DAI, BFD, UDLD, LLDP support, DHCP relay, Port Security, MAC Address Notification, RSPAN, MIB, VRF, CoS, 802.1x authentication, PTP, IGMP filtering, PROFINET v2, IP source guard, ARP inspection, Flex Link support, REP, SmartPort technology, PRP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
RAM 512 MB
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 PoE+ | 4 x 1000Base-T RJ-45 uplink | 4 x SFP uplink | 1 x mini-USB Type B | 1 x console RJ-45 | 4 x 1000Base-X SFP
Expansion Slots 1 (total) / 0 (free) x SD Memory Card
Power
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required DC 9.6 – 60 V
Electric Current Required 4.3 A
Power Consumption Operational 40 Watt
Miscellaneous
Included Accessories 1 GB SD card
MTBF 536,220 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-14, EN 50121-4, IP30, NOM-019-SCFI-1998, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 60529, EN 61326, AS/NZS CISPR22:2004 Class A, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, CNS13438:2006 Class B
Pricing Type Refurbished
TAA Compliant Yes
Software / System Requirements
Software Included Cisco IOS LAN Base
Dimensions & Weight
Width 6.1 in
Depth 5.1 in
Height 6.1 in
Weight 6.35 lbs
