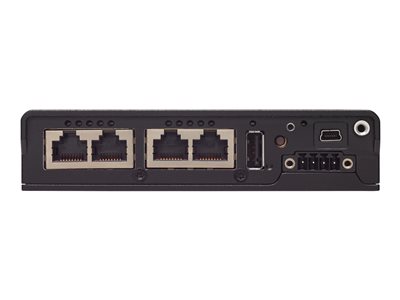

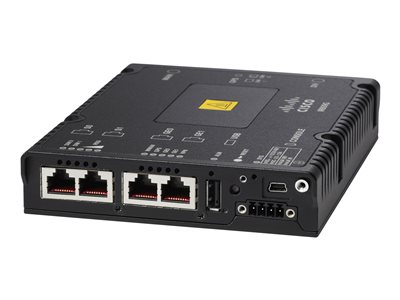

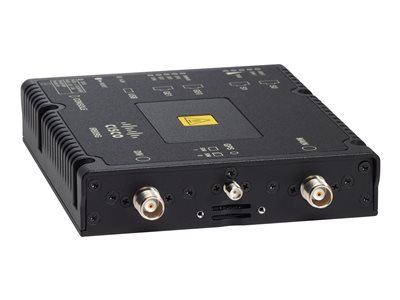

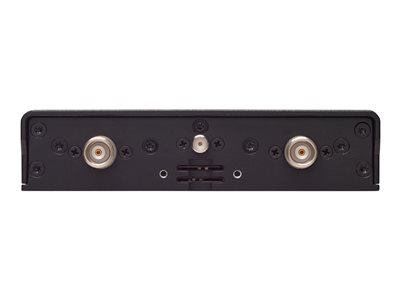

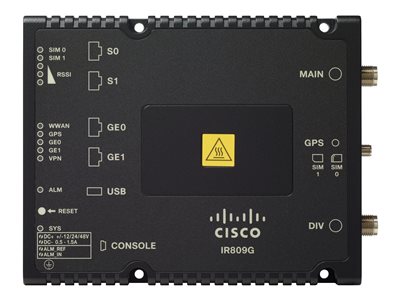

Cisco Industrial Router 809 – wireless router – WWAN – desktop

Add to Wishlist

Tech overview

Cisco Industrial Router 809 – Wireless router – WWAN – 2-port switch – GigE – refurbished

AED8,099.00

Add to Wishlist

The 809 Industrial Integrated Services Router provides highly secure, reliable, and easy-to-manage 3G/4G LTE WAN cellular connectivity for remote asset monitoring. It supports Cisco IOS Software, is compact, and designed for harsh environments. Use it for distribution automation, pipeline and roadway infrastructure monitoring, and highly secure connectivity for remote assets like ATM machines.

SKU: IR809G-LTE-NAK9-RF Category: Tag:
Specifications
General
Device Type Wireless router – 2-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity IPSec tunnels: 20
Network / Transport Protocol TCP/IP, UDP/IP, L2TP, RSVP, ICMP/IP, IPSec, SLIP, FTP, DNS, L2TPv3, DDNS, RTP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm DES, Triple DES, SHA, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, DFS support, LLQ, CBWFQ, WFQ, STP support, ACL support, QoS, LFI, DMVPN, VRF-Lite, BFD, IPv4 support, MRC, MIB, VRF, CoS, 802.1x authentication, DSCP support, CSD, Storm Control
Compliant Standards IEEE 802.1D, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, IP30, AS/NZS CISPR 22, CNS 13438, IEC 61850-3, EN 301 489-7, EN 301 489-1, IEEE 1613, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, EN 50155, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
Processor Qualcomm MDM9615
Memory
RAM 2 GB (installed) / 2 GB (max)
Flash Memory 4 GB (installed) / 8 GB (max)
Status Indicators System, active, WLAN, WAN, LAN, 3G, 4G, GPS
Communications
Type Wireless cellular modem
Cellular Protocol GSM, GPRS, UMTS, EDGE, HSPA+, LTE, DC-HSPA+
Max Transfer Rate 100 Mbps
Expansion / Connectivity
Interfaces LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) – RJ-45, Serial: 1 x RS-232, Serial: 1 x RS-232/485, USB: 1 x mini-USB Type B
Expansion Slots 2 (total) / 2 (free) x SIM
Power
Power Device External power adapter
Voltage Required DC 9.6 – 60 V
Power Consumption Operational 29 Watt
Miscellaneous
MTBF 440,370 years
Pricing Type Refurbished
Localization North America
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
Dimensions & Weight
Width 5 in
Depth 6.3 in
Height 1.1 in
Weight 27.16 oz
