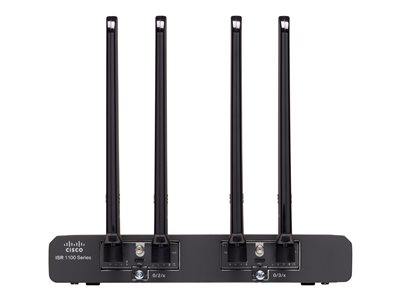

Cisco Integrated Services Router 1109 – router – desktop

Add to Wishlist

Tech overview

Cisco Integrated Services Router 1109 – Router – GigE

9,999.00 د.إ

Add to Wishlist

Cisco 1100 series integrated services routers combine Internet access, comprehensive security, and wireless services in a single, high-performance device. The routers are easy to deploy and manage, with scalable and control plane capabilities.

SKU: C1109-4PLTE2PWE Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec, IPv6
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, PIM-SM, policy-based routing (PBR), MLD
Authentication Method RADIUS
Features VPN support, Dynamic Multipoint VPN (DMVPN), fanless, dual SIM support, Performance Routing (PfR)
Compliant Standards EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM 4 GB
Flash Memory 4 GB
Built-in Devices GPS
Status Indicators Status
Communications
Cellular Protocol LTE Advanced
Expansion / Connectivity
Interfaces WAN: 1 x 1000Base-T/1000Base-X – RJ-45 Ā¦ LAN: 3 x 1000Base-T – RJ-45 Ā¦ USB 3.0: 1 x
Antenna External
Antenna Qty 4
Power
Power Device External power adapter
Voltage Required AC 100 – 240 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS XE
Dimensions & Weight
Width 11.2 in
Depth 9.8 in
Height 1.7 in
Weight 5.93 lbs
