Routers

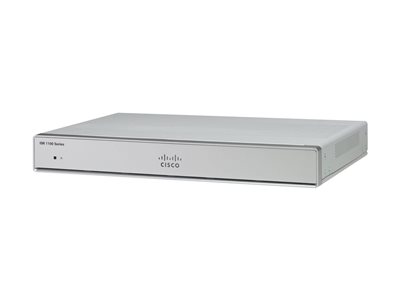

Cisco Integrated Services Router 1111 – router – desktop
Tech overview
Cisco Integrated Services Router 1111 – Router – 8-port switch – 1GbE – WAN ports: 2
AED6,899.00
|
| Specifications | |
|---|---|
| General | |
| Device Type | Router – 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | |
| Encryption Throughput | 250 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, PBR, MPLS, BFD, RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | |
| Power over Ethernet (PoE) | Yes |
| Class-Based Weighted Fair Queuing (CBWFQ) | Yes |
| Weighted Random Early Detection (WRED) | Yes |
| Access Control List (ACL) support | Yes |
| Quality of Service (QoS) | Yes |
| Dynamic Multipoint VPN (DMVPN) | Yes |
| NetFlow | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| IPFIX | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Location ID Separation Protocol (LISP) | Yes |
| Packet Aggregation A-MPDU | Yes |
| Packet Aggregation A-MSDU | Yes |
| Management Information Base (MIB) II | Yes |
| Application Visibility and Control (AVC) | Yes |
| Authentication, Authorization and Accounting (AAA) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Encapsulated Remote SPAN (ERSPAN) | Yes |
| Embedded Event Manager (EEM) | Yes |
| DNA Support | Yes |
| Compliant Standards | |
| IEEE Standards | 802.3af, 802.11i, 802.3ah, 802.1ag, 802.3at, 802.11r |
| Other Standards | CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| Memory | |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Status Indicators | |
| Status | |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X – RJ-45/SFP, WAN: 1 x 1000Base-T – RJ-45, LAN: 4 x 1000Base-T – RJ-45, LAN: 2 x 1000Base-T (PoE+) – RJ-45, LAN: 2 x 1000Base-T (PoE) – RJ-45, USB 3.0: 1 x console |
| Power | |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational | 66 Watt |
| Dimensions & Weight | |
| Width | 12.7 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.71 lbs |
