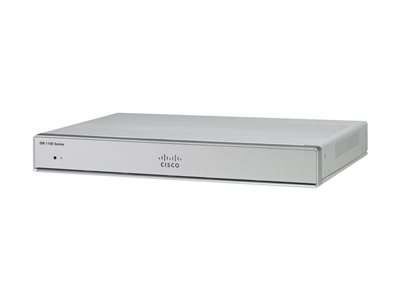

Cisco Integrated Services Router 1117 – router – DSL modem – desktop
Tech overview
Cisco Integrated Services Router 1117 – Router – DSL modem – 4-port switch – GigE – WAN ports: 2 – refurbished
AED1,599.00
Cisco Integrated Services Router combines WAN, comprehensive security, wired and wireless access in a single, high-performance platform.
| Specifications | |
|---|---|
| General | |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | |
| Encryption throughput | 250 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | |
| CBWFQ | WRED |
| ACL support | QoS |
| DMVPN | 2T2R MIMO technology |
| NetFlow | MRC |
| IPFIX | CSD |
| LISP | packet aggregation A-MPDU |
| packet aggregation A-MSDU | MIB II |
| AVC | AAA |
| DFS | ERSPAN |
| EEM | |
| Compliant Standards | |
| IEEE 802.3af | IEEE 802.11i |
| IEEE 802.3ah | IEEE 802.1ag |
| IEEE 802.3at | IEEE 802.11r |
| IEEE 802.11ac Wave 2 | CISPR 24 |
| EN 61000-3-2 | EN55022 |
| ICES-003 | EN 61000-3-3 |
| EN55024 | CISPR 22 |
| CB | EN 61000-6-1 |
| EN 61000-4-4 | EN 61000-4-2 |
| EN 61000-4-3 | EN 61000-4-6 |
| EN 61000-4-5 | EN 61000-4-11 |
| FCC CFR47 Part 15 | UL 60950-1 Second Edition |
| VCCI V-3 | EN 60950-1 Second Edition |
| IEC 60950-1 Second Edition | AS/NZS CISPR 22 |
| CNS 13438 | EN 301 489-7 |
| EN 301 489-1 | FCC CFR47 Part 22 |
| FCC CFR47 Part 24 | CAN/CSA C22.2 No. 60950-1 Second Edition |
| EN 300 386 | EN 301 489-24 |
| EN 301 908-1 | EN 301 908-2 |
| EN 301 511 | EN 301 908-13 |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Status Indicators | |
| Status | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2+, VDSL2+ |
| Protocols & Specifications | |
| ITU G.992.5 Annex M | ITU G.993.2 |
| ITU G.992.3 Annex M | |
| Expansion / Connectivity | |
| Interfaces | |
| WAN: 1 x 1000Base-T/1000Base-X – RJ-45/SFP | LAN: 2 x 1000Base-T – RJ-45 | LAN: 1 x 1000Base-T (PoE+) – RJ-45 | LAN: 1 x 1000Base-T (PoE) – RJ-45 | USB 3.0: 1 x console | WAN: 1 x VDSL2 / ADSL2+ | |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Pricing Type | Refurbished |
| Dimensions & Weight | |
| Width | 12.7 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.71 lbs |
