| General |
|
| Device Type |

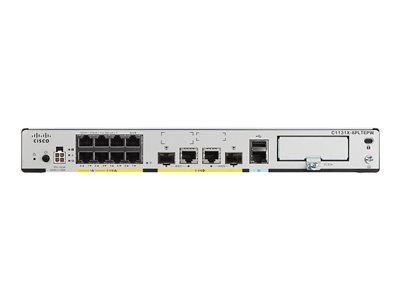

Router – 8-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Performance |
SD-WAN IPsec throughput (1400 bytes, controller mode): 1889 Mbps ¦ SD-WAN IPsec throughput (IMIX, controller mode): 465 Mbps ¦ IPv4 forwarding throughput (IMIX): 1648 Mbps ¦ IPsec throughput (multi tunnel, IMIX): 470 Mbps ¦ Maximum encryption throughput (single tunnel, IMIX): 650 Mbps |
| Capacity |
SD-WAN overlay tunnels scale: 200 ¦ IPsec IPv4 tunnels: 100 ¦ ACLs per system: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 10000 ¦ IPv4 routes: 280000 ¦ IPv6 routes: 260000 ¦ NAT sessions: 100000 ¦ Firewall sessions: 20000 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 |
| Network / Transport Protocol |
IPSec, IPv4, IPv6 |
| Remote Management Protocol |
HTTP, HTTPS, CLI |
| Encryption Algorithm |
AES, WPA2 |
| Authentication Method |
RADIUS |
| Features |
QoS, reset button, fanless, MRC, CSD, beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, AAA, DFS, TDD, MIP, 2×2:2 MU-MIMO technology, security slot (Kensington security lock compatible), BSS Coloring, FirstNet ready, TWT, remote firmware upgrade, SMS |
| Compliant Standards |
IEEE 802.1x, Wi-Fi CERTIFIED 6, CISPR 24, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, UL 60950, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, EN 62368-1, IEC 62368-1, UL 62368-1, CSA 60950-1, CSA 62368-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13, ICES 003 |
| RAM |
8 GB |
| Flash Memory |
16 GB |
| Built-in Devices |
GPS |
| Status Indicators |
Status |
| Line Properties |
|
| Line Coding Format |
OFDMA |
| Expansion / Connectivity |
|
| Interfaces |
WAN: 2 x 1000Base-X – SFP (mini-GBIC) ¦ WAN: 2 x 1000Base-T – RJ-45 ¦ LAN: 8 x 1000Base-T – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Console: 1 x RJ-45 ¦ USB: 1 x 5 pin Micro-USB Type A |
| Expansion Slots |
1 (total) / 1 (free) x Pluggable Interface Module (PIM) |
| Power |
|
| Power Device |
External power adapter – 66 Watt |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
31 Watt |
| Miscellaneous |
|
| Localization |
Bahrain, Oman, Saudi Arabia, United Arab Emirates, Israel, South Africa, Myanmar, Thailand, Ghana, Kenya, Uganda, Botswana, Kazakhstan, Europe |
| Software / System Requirements |
|
| Software Included |
Cisco Embedded Wireless Controller software image |
| Dimensions & Weight |
|
| Width |
12.7 in |
| Depth |
8.9 in |
| Height |
1.6 in |
| Weight |
5.69 lbs |
