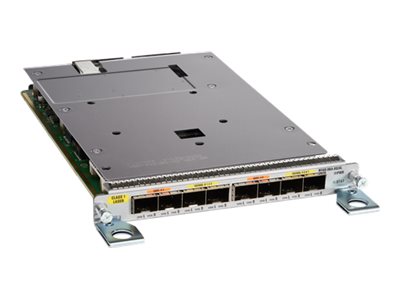

Cisco Interface Module – expansion module – 10 Gigabit SFP+ / 25 Gigabit SFP28 x 8

Add to Wishlist

Cisco Interface Module – Expansion module – 10 Gigabit SFP+ / 25 Gigabit SFP28 x 8 – Flexible Consumption Model

AED116,999.00

Add to Wishlist
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ / 25 Gigabit SFP28 x 8
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
Data Transfer Rate 50 Gbps
Features MPLS support, side to side airflow, Ethernet Virtual Private Network (EVPN), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Layer 2 VPN (L2VPN) support, Synchronous Ethernet (SyncE), Segment Routing Traffic Engineering (SR-TE), support for Online Insertion and Removal (OIR), Support Operations, Administration, and Maintenance (OAM) mechanism, Ethernet link aggregation, Topology Independent Loop-Free Alternate (TI-LFA), Cisco Evolved Programmable Networks Manager (EPN-M)
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, ANSI T1.101, ITU-T G.823, ITU-T G.824, IEEE 1588-2008, ITU-T G.813, ITU-T G.781, ITU-T G.8264, ITU-T G.8261, ITU-T Y.1361, ITU-T G.8262, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.703, ITU-T G.8275.2
Expansion / Connectivity
Interfaces 8 x 10Gb Ethernet/25Gb Ethernet – SFP+/SFP28
Miscellaneous
MTBF 2,193,700 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-2, EN 61000-4-6, ICES-003 Class A, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 50121-4, GR-1089-CORE, VCCI Class A, KN24, GR-63-CORE, KN22 Class A, GR-1244-CORE, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, GR-253-CORE, KN 61000-4-2, KN 61000-4-11, KN 61000-4-6, KN 61000-4-8, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 300386 Class A, AS/NZS 60950-1:2003, ETS/EN 300 119 Part 4, ETS/EN 300 753, ETS/EN 300 019 1.2, ETS/EN 300 019 2.3, ETS/EN 300 019 3.2, RRA 2009-38
Pricing Type Flexible Consumption Model
Power
Power Consumption Operational 42 Watt
Dimensions & Weight
Width 9.4 in
Depth 15.4 in
Height 4.3 in
Weight 34.88 oz
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 149 °F
Humidity Range Operating 5 – 95% (non-condensing)
