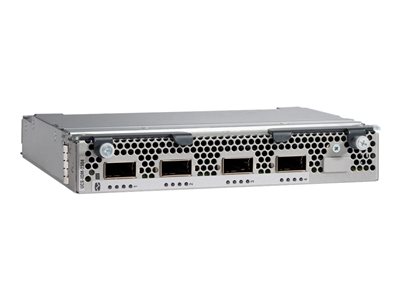

Cisco IOM 2304V2XP I/O Module – Expansion module – 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 – for UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select
AED37,499.00
Cisco UCS 2304 Fabric Extender
The Cisco UCS 2304 Fabric Extender has four 40 Gigabit Ethernet, FCoE-capable, Quad Small Form-Factor Pluggable (QSFP+) ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2304 can provide one 40 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis, giving it a total eight 40G interfaces to the compute. Typically configured in pairs for redundancy, two fabric extenders provide up to 320 Gbps of I/O to the chassis.
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet |
| Performance |
| Forwarding performance | 960 Gbps |
| Capacity |
| VLANs supported | 1024 |
| Jumbo frame size | 9216 |
| Features | VLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames support, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Fabric Extender Transceiver (FET) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1Qaz, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Expansion / Connectivity |
| Interfaces | 4 x 40Gb Ethernet / FCoE (uplink) – QSFP+ <br> 8 x 40Gb Ethernet – backplane |
| Miscellaneous |
| Dimensions & Weight |
| Width | 1.4 in |
| Depth | 7.2 in |
| Height | 7.6 in |
| Weight | 2.5 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Compatibility Information |
| Designed For | Cisco UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer) |
