Routers

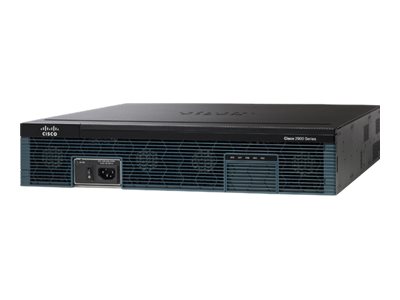

Cisco ISR G2 2951 – Application Experience with Voice Bundle – router – rack-mountable
Tech overview
Cisco ISR G2 2951 – Application Experience with Voice Bundle – router – GigE – WAN ports: 3 – rack-mountable
57,599.00 د.إ
The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) family designed in compact non-hardened form factor, is a small router with support for integrated third-generation (3G) Wireless WAN (mobile broadband backhaul). The Cisco 819 ISR machine to machine gateway provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON, TR-069 |
| Features | VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), Cisco EnergyWise technology, Web Services Management Agent (WSMA), NetFlow |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, VCCI V-3, EN 61000, TIA/EIA/IS-968, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 4 GB |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Expansion / Connectivity |
| Interfaces | WAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) |
| Expansion Slots | 4 (total) / 4 (free) x EHWIC ¦ 2 (total) / 1 (free) x CompactFlash ¦ 1 (total) / 1 (free) x ISM ¦ 1 (total) / 1 (free) x double-wide service module (SM-D) ¦ 3 (total) / 2 (free) x PVDM ¦ 2 (total) / 2 (free) x service module (SM) |
| Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Included Accessories | 32-channel voice DSP module |
| Rack Mounting Kit | Included |
| Software / System Requirements |
| OS Provided | Cisco IOS IP Base |
| Software Included | Cisco IOS Unified Communications, Cisco Wide Area Application Services Express, Cisco Virtual Wide Area Application Services (1300 connection licenses), Cisco Unified Border Element Enterprise Edition (10 sessions), Cisco Application Experience DATA and WAAS |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 18.5 in |
| Height | 3.5 in |
| Weight | 29.1 lbs |
There are no reviews yet.
