Network Adapters

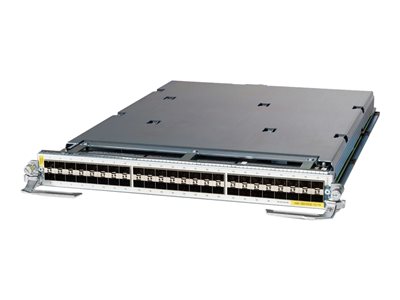

Cisco Line Card – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 48
Cisco Line Card – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 – Consumption Model
AED347,299.00
The Cisco ASR 9000 Series 48-port dual-rate 10 Gigabit Ethernet line card delivers high density and high 10 Gigabit Ethernet performance to any slot of a Cisco ASR 9000 Series aggregation services router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic, all with an incredibly low power profile
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Features | Flow control, full duplex capability, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV) |
| Compliant Standards | IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731 |
| Expansion / Connectivity |
| Interfaces | 48 x 10GBase-X – SFP/SFP+ |
| Miscellaneous |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EMC, ICES-003 Class A, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2 |
| Pricing Type | Consumption Model |
| Software / System Requirements | OS Required: Cisco IOS XR 6.2.1 |
| Dimensions & Weight |
| Width | 1.6 in |
| Depth | 22 in |
| Height | 14.5 in |
| Weight | 28 lbs |
| Environmental Parameters |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
There are no reviews yet.
