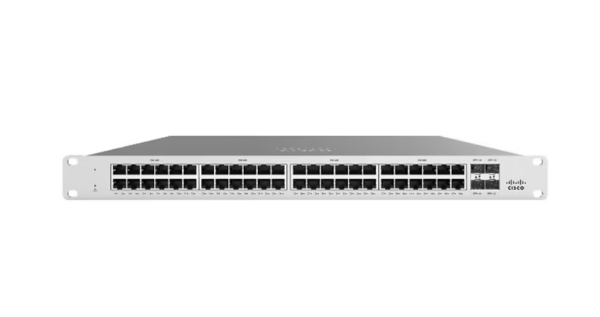

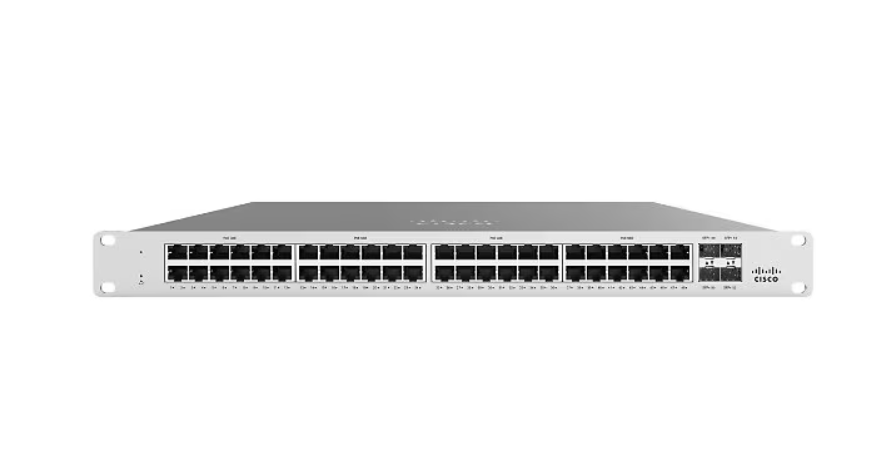

Cisco Meraki Cloud Managed MS125-48FP – switch – 48 ports – managed

Add to Wishlist

Quick tech specs

  • 48FP
  • managed
  • desktop, wall-mountable
  • Switch
  • 48 x 10/100/1000 + 4 x 10 Gigabit SFP+

40,099.00 د.إ

Add to Wishlist

Know your gear

The Cisco Meraki MS125 series provides 10G SFP+ uplinks to future-proof demanding small branch and office environments.

The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 10G SFP+ uplinks, virtual stacking, up to 60W of port power with PoE, and nuilt-in power supplies/fans. The non-POE models (MS125-24 & MS125-48) feature fanless operation.

Meraki’s centralized management platform gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with the detailed event and change logs.

The MS125-48 features 48 x 1GbE switch ports.

SKU: MS125-48FP-HW Category: Tag:
Category Specification
Overview
Brand Cisco Meraki
Product Line Cisco Meraki Cloud Managed
Model MS125-48FP
Manufacturer Meraki
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco Discovery Protocol, Crossover detection, DHCP client, DHCP snooping, DSCP to CoS Mutation, E-mail alert, Fanless, Firmware upgradable, Flow control, IGMP snooping, Link Aggregation Control Protocol (LACP), Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Security lock slot (cable lock sold separately), Single Sign-On (SSO) support, SMS alert, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, Uni-Directional Link Detection (UDLD), VLAN support, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches) Desktop, Wall-mountable
Jumbo Frame Support 9578 bytes
MAC Address Table Size 32,000 entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management SNMP
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 4 x 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45
Port Quantity 48
Port Type 10/100/1000
Ports Type (2nd) 10 Gigabit SFP+
Power
Frequency 47 – 63 hertz
Power Consumption Operational 845.4 watt
Technical Information
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
MTBF 311,726 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS
Capacity VLANs supported: 4094
Packaged Quantity 1
Performance Forwarding rate: 130.95 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.79 lbs
Width 17.3 inch
Depth 13.4 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA, FCC, IC, RCM, RoHS
