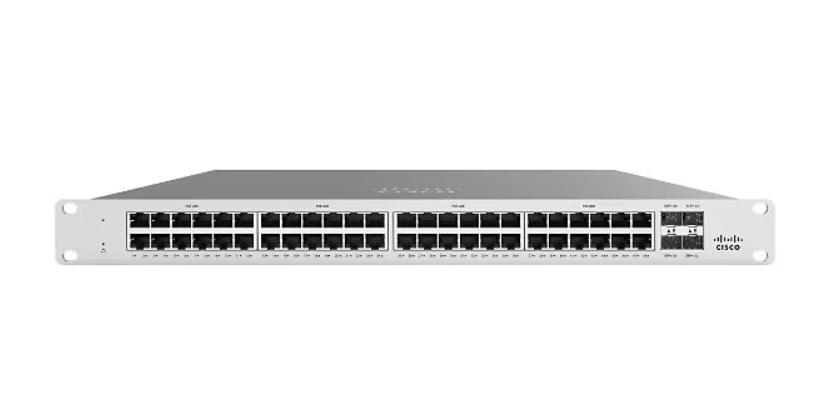

Cisco Meraki Cloud Managed MS125-48LP – switch – 48 ports – managed

Add to Wishlist

Quick tech specs

  • Form Factor: 1U
  • Zero-touch Provisioning
  • DHCP Snooping
  • Ports: 48 x 1G,4 x 10G SFP+ Uplinks
  • 802.1X Authentication
  • DHCP Relay

27,199.00 د.إ

Add to Wishlist

Know your gear

The Cisco MS125-48LP Cloud Managed Switch provides Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

SKU: MS125-48LP-HW Category: Tag:
Category Details
Overview
Brand Cisco Meraki
Product Line Cisco Meraki Cloud Managed
Model MS125-48LP
Manufacturer Meraki
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features ACL support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco Discovery Protocol, Crossover detection, DHCP client, DHCP snooping, DSCP to CoS Mutation, E-mail alert, Fanless, Firmware upgradable, Flow control, IGMP snooping, LACP, Port mirroring, QoS, RSTP, Role-Based Access Control (RBAC), Security lock slot, SSO support, SMS alert, STP, STP BPDU Guard, STP Root Guard, Syslog support, UDLD, VLAN support, Zero-touch provisioning (ZTP)
Form Factor Desktop, Wall-mountable
Jumbo Frame Support 9578 bytes
MAC Address Table Size 32000 entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management SNMP
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 4 x 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45
Port Quantity 48
Port Type 10/100/1000
Ports Type (2nd) 10 Gigabit SFP+
Power
Frequency 47 – 63 hertz
Power Consumption Operational 439.8 watt
Technical Information
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
MTBF 287,429 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS
Capacity VLANs supported: 4094
Packaged Quantity 1
Performance Forwarding rate: 130.95 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 11.9 lbs
Width 17.3 inch
Depth 9.8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA, FCC, IC, RCM, RoHS
