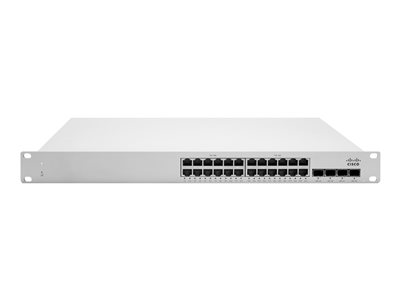

Cisco Meraki Cloud Managed MS225-24 – switch – 24 ports – managed – rack-mountable MS225-24-HW

Availability:

10 in stock


14,699.00 د.إ

10 in stock

Meraki | MS225-24-HW | MS225-24-3YR | MS225-24 L2 Stck Cld-Mngd 24x GigE Switch with MS225-24 Enterprise License and Support



Overview

The Cisco Meraki MS225-24 is a 24-port cloud-managed stackable L2 enterprise-class access switch with four SFP+ uplinks and support for Cisco’s Redundant Power System (RPS) for mission critical environments. The MS225 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS225 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.

Centrally managed from the cloud

The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Cisco Meraki MS is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Cisco Meraki MS Switches are the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. MS Switches integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

SKU: MS225-24-HW Category: Tags: , , ,

Specifications

General
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x SFP+
Performance Stacking bandwidth: 80 GbpsĀ Switching capacity: 128 GbpsĀ Forwarding performance: 95.24 Mpps
MAC Address Table Size 16K entries
Jumbo Frame Support 9600 bytes
Max Units In A Stack 8
Routing Protocol IGMP
Remote Management Protocol SNMP, HTTP
Authentication Method RADIUS
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), fanless, LLDP support, DHCP relay, Port Security, DHCP client, e-mail notification, Zero Touch Auto Provisioning, static routing, Multicast filtering function, 802.1x authentication, cable test, Bridge protocol data unit (BPDU), Link Aggregation, Role-Based Access Control (RBAC), push notification, Root Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Status Indicators Status
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45Ā 4 x 10GBase-X SFP+ uplinkĀ 2 x network stack device
Power
Power Device Internal power supply
Power Redundancy Yes
Voltage Required AC 120/230 V (40 – 60 Hz)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CSA, IC, FCC, RoHS, RCM
Dimensions & Weight
Width 19.1 in
Depth 9.8 in
Height 1.7 in
Weight 6.02 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 90% (non-condensing)
General
Authentication Method RADIUS
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), fanless, LLDP support, DHCP relay, Port Security, DHCP client, e-mail notification, Zero Touch Auto Provisioning, static routing, Multicast filtering function, 802.1x authentication, cable test, Bridge protocol data unit (BPDU), Link Aggregation, Role-Based Access Control (RBAC), push notification, Root Guard
Jumbo Frame Support 9600 bytes
MAC Address Table Size 16K entries
Max Units In A Stack 8
Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding performance: 95.24 Mpps
Ports 24 x 10/100/1000 + 4 x SFP+
Remote Management Protocol SNMP, HTTP
Routing Protocol IGMP
Status Indicators Status
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 9.8 in
Height 1.7 in
Weight 6.02 lbs
Width 19.1 in
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Max Operating Temperature 104 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 2 x network stack device
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards CSA, IC, FCC, RoHS, RCM
Rack Mounting Kit Included
Power
Power Device Internal power supply
Power Redundancy Yes
Voltage Required AC 120/230 V (40 – 60 Hz)
