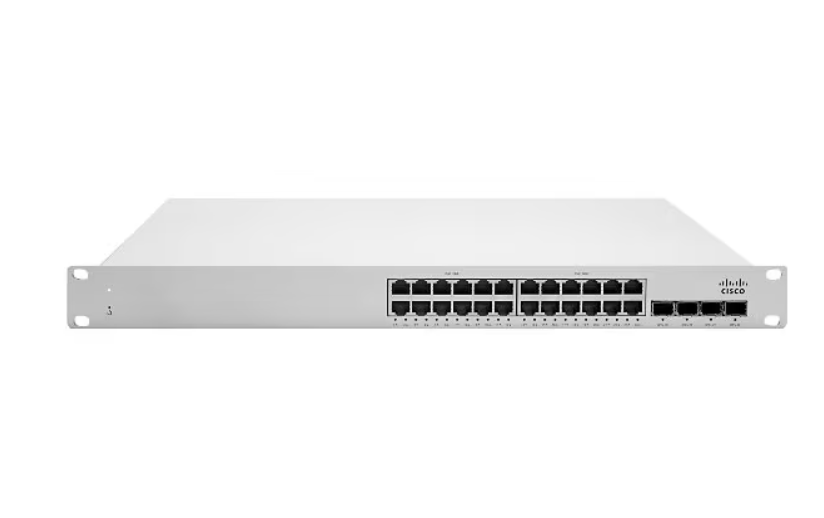

Cisco Meraki Cloud Managed MS250-24P – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24P
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
  • PoE+ (370 W)
  • Switch
  • managed
  • rack-mountable

42,999.00 د.إ

Add to Wishlist

Know your gear

The Cisco Meraki MS250-24P is a 24-port cloud-managed stackable enterprise-class access switch with four SFP+ uplinks, support for redundant power supplies for mission critical environments, and IP routing. The MS250 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS250 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
Category: Tag:
Category Specification
Overview
Brand Cisco Meraki
Product Line Cisco Meraki Cloud Managed
Model MS250-24P
Manufacturer Meraki
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast Storm Control, Cisco Discovery Protocol, Cloud managed, Crossover detection, DHCP relay, DHCP server, DHCP support, E-mail alert, Firmware upgradable, Flow control, IGMP snooping, IPv4 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Root Guard, SMS alert, Spanning Tree Protocol (STP) support, Static routing, Syslog support, VLAN support
Form Factor Rack-mountable
Jumbo Frame Support 9600 bytes
Manageable Yes
Max Units in a Stack 8
PoE Budget 370 watt
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management SNMP
Routing Protocol OSPFv2, Static IP routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 24 x 1000Base-T RJ-45 PoE+ – 30 W, 4 x 10Gbit LAN SFP+ uplink
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10 Gigabit SFP+ (uplink)
Power
Frequency 47 – 63 hertz
Redundant Power Supply Optional
Technical Information
Max Operating Temperature 104°F
Min Operating Temperature 32°F
MTBF 403,717 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS
Capacity Forwarding table entries: 16000, Tagged VLANs: 4095
Device Type Internal power supply
Packaged Quantity 1
Performance Switching capacity: 128 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.58 lbs
Width 19.1 inch
Depth 16.4 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA, FCC, IC, RCM, RoHS
