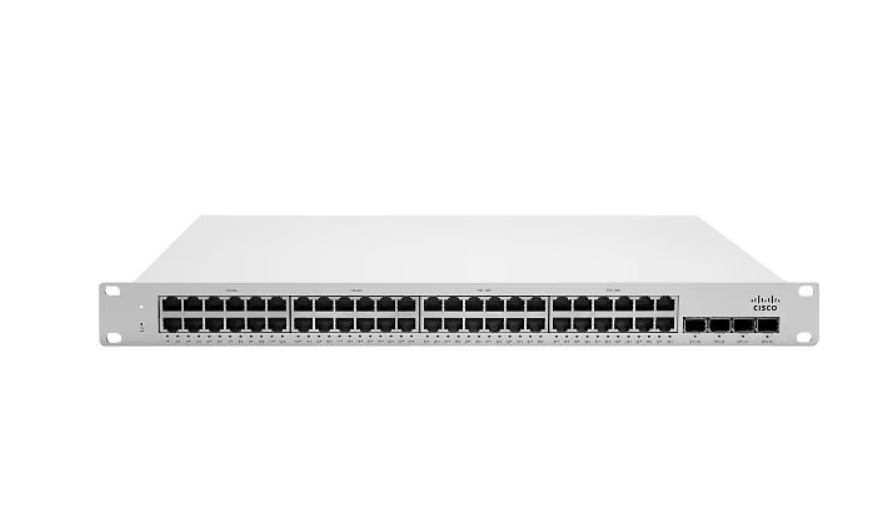

Cisco Meraki Cloud Managed MS250-48FP – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48FP
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x SFP+
  • PoE+ (740 W)
  • Switch
  • managed
  • desktop, rack-mountable

AED69,099.00

Add to Wishlist

Know your gear

The Cisco Meraki MS250-48FP is a 24-port cloud-managed stackable enterprise-class access switch with four SFP+ uplinks, support for redundant power supplies for mission critical environments, and IP routing. The MS250 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS250 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
Category: Tag:
Category Specification
Overview
Brand Cisco Meraki
Product Line Cisco Meraki Cloud Managed
Model MS250-48FP
Manufacturer Meraki
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features 802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable test, DHCP client, DHCP relay, DHCP server, DHCP snooping, E-mail alert, E-mail notification, Flow control, IGMP snooping, Link Aggregation, LLDP support, Multicast filtering, Port Security, Push notification, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP), Role-Based Access Control (RBAC), Root Guard, Spanning Tree Protocol (STP), Static routing, Syslog, Virtual Route Redundancy Protocol (VRRP), Zero Touch Auto Provisioning
Form Factor (Hubs & Switches) Desktop, Rack-mountable
Jumbo Frame Support 9600 bytes
MAC Address Table Size 32K entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 740 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management HTTP, SNMP
Routing Protocol IGMP, OSPFv2, VRRP
Stackable Stackable
Status Indicators Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 2 x network stack device, 4 x 10GBase-X SFP+ uplink, 48 x 1000Base-T RJ-45 PoE+ – 25.5 W
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) SFP+
Power
Frequency 40 – 60 hertz
Redundant Power Supply Yes
Technical Information
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 90% (non-condensing)
Product Information
Authentication Method RADIUS
Device Type Internal power supply
Packaged Quantity 1
Performance Stacking bandwidth: 80 Gbps, Switching capacity: 176 Gbps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.83 lbs
Width 19.1 inch
Depth 20.3 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA, FCC, IC, RCM, RoHS
