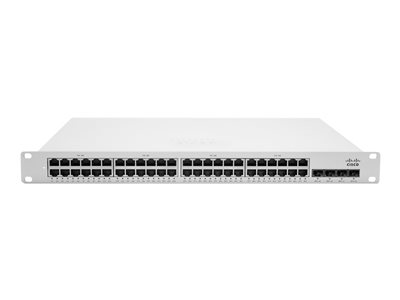

Cisco Meraki Cloud Managed MS350-48LP – switch – 48 ports – managed – rack-mountable MS350-48LP-HW

Availability:

10 in stock


38,299.00 د.إ

10 in stock

Cisco Meraki MS350-48LP Cloud Managed Switch – 48 Port Gigabit Ethernet, Layer 3, 370W PoE Enterprise Licensing Required and Sold Separately



Overview

The Cisco Meraki MS350-48LP is a 48-port GbE 370W PoE/PoE+ cloud-managed stackable L3 enterprise-class access switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS350 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS350 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.

Centrally managed from the cloud

The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Cisco Meraki MS is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Cisco Meraki MS Switches are the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. MS Switches integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

SKU: MS350-48LP-HW Category: Tags: , , ,

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Non-blocking switching capacity: 176 Gbps
Capacity Forwarding table entries: 96000Ā Tagged VLANs: 4096
Jumbo Frame Support 9600 bytes
Routing Protocol OSPFv2, static IP routing
Remote Management Protocol SNMP 2c
Authentication Method RADIUS
Features Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ – 25.5 WĀ 4 x 10Gbit LAN SFP+ uplink
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1025 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 478 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 516,000 hours
Compliant Standards CSA, C-Tick, IC, RoHS
Dimensions & Weight
Width 19.1 in
Depth 20.3 in
Height 1.7 in
Weight 13.89 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Authentication Method RADIUS
Capacity Forwarding table entries: 96000 ¦ Tagged VLANs: 4096
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Features Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection
Jumbo Frame Support 9600 bytes
Performance Non-blocking switching capacity: 176 Gbps
PoE Budget 370 W
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
Remote Management Protocol SNMP 2c
Routing Protocol OSPFv2, static IP routing
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 20.3 in
Height 1.7 in
Weight 13.89 lbs
Width 19.1 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 113 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ – 25.5 W ¦ 4 x 10Gbit LAN SFP+ uplink
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Miscellaneous
Compliant Standards CSA, C-Tick, IC, RoHS
MTBF 516,000 hours
Rack Mounting Kit Included
Power
Installed Qty 1 (installed) / 2 (max)
Power Consumption Operational 478 Watt
Power Device Internal power supply – hot-plug
Power Provided 1025 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
