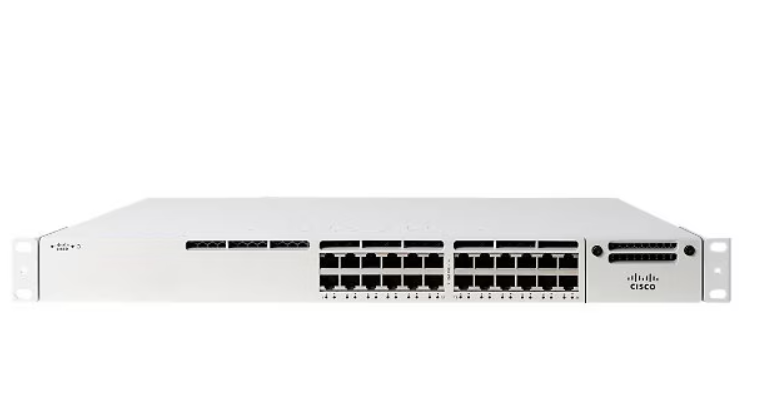

Cisco Meraki Cloud Managed MS390-24UX – switch – 24 ports – managed – rack-mountable
Quick tech specs
- 24UX
- L3
- 24 x 100/1000/2.5G/5G/10GBase- -T (UPOE)
- UPOE (560 W)
- Switch
- managed
- rack-mountable
78,099.00 د.إ
Know your gear
Most powerful access switch Meraki has ever made. Combine the simplicity of the Meraki dashboard with the power of innovative Cisco technology.
| Category | Specification |
|---|
| Overview |
| Brand | Cisco Meraki |
| Product Line | Cisco Meraki Cloud Managed |
| Model | MS390-24UX |
| Manufacturer | Meraki |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad (LACP) |
| Features | Access Control List (ACL) support, Auto-negotiation, BPDU Guard, Broadcast Storm Control, Cisco Discovery Protocol (CDP), Cisco StackPower technology, Cloud managed, Crossover detection, DHCP relay, DHCP server, DHCP snooping, E-mail alert, Hot swappable fan, IGMP snooping, Loop Guard, MAC Access Bypass (MAB), Per-VLAN Spanning Tree (PVST), Port mirroring, Port Security, Quality of Service (QoS), Role-Based Access Control (RBAC), Root Guard, Syslog support, Uni-Directional Link Detection (UDLD) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| MAC Address Table Size | 32K entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| PoE Budget | 560 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | UPOE |
| Product Type | Switch |
| Remote Management | DHCP, IPv4, IPv6, RADIUS, RSTP |
| Routing Protocol | OSPF, OSPFv2, RSTP, Static IP routing, STP, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Expansion Slots |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Connectivity |
| Interface Provided | 1 x management, 2 x network stack device, 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE |
| Port Quantity | 24 |
| Port Type | 100/1000/2.5G/5G/10GBase-T (UPOE) |
| Power |
| Frequency | 50 – 60 hertz |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 809.9 watt |
| Power Provided | 1100 watt |
| Power Supplies Installed | 1 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Redundant Power Supply Supported | 1+1 (with optional power supply) |
| Technical Information |
| Max Operating Temperature | 113 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| MTBF | 214,760 Hours |
| Operating Humidity | 5 – 95% |
| Product Information |
| Authentication Method | RADIUS |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding rate: 476.19 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 640 Gbps |
| Rack Mounting Kit | Included |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 18.19 lbs |
| Width | 17.5 inch |
| Depth | 20.2 inch |
| Physical Characteristics |
| Color Category | White |
| Certifications & Listings |
| Compliant Standards | AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS, TCVN 7189 Class A, TCVN 7317, UL 60950-1, VCCI-CISPR 32:2016 Class A |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
