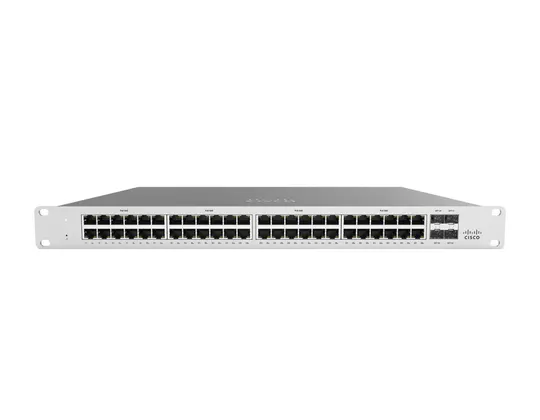

Cisco Meraki MS120-48 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey


MS120-48, 48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP 1GbE uplink, RJ45 Management port, 104 Gbps

12,399.00 د.إ

Highlights

Š”isco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Category: Tag:
Feature Specification
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 4
Console port RJ-45
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
10G support N
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 4094
MAC address table 32000 entries
Switching capacity 104 Gbit/s
Jumbo frames support Y
Jumbo frames 9578
DHCP features DHCP server, DHCP snooping, DHCP client
Access Control List (ACL) Y
IGMP snooping Y
BPDU filtering/protection Y
Root protection Y
Multicast support Y
Management protocols SNMP
Switching protocols RSTP, STP, LLDP, CDP
Rack mounting Y
Form factor 1U
Product colour Grey
Mean time between failures (MTBF) 692887 h
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
AC input frequency 47/63 Hz
Power consumption (typical) 16 W
Power consumption (max) 882 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 5 – 95%
Width 440 mm
Depth 250 mm
Height 44 mm
Weight 4.06 kg
Product family Meraki
