Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location. Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; thereās no need for complicated configuration files or even direct physical access to the switch. Merakiās centralized management gives administrators deep visibility into the network and how itās used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
ethernet

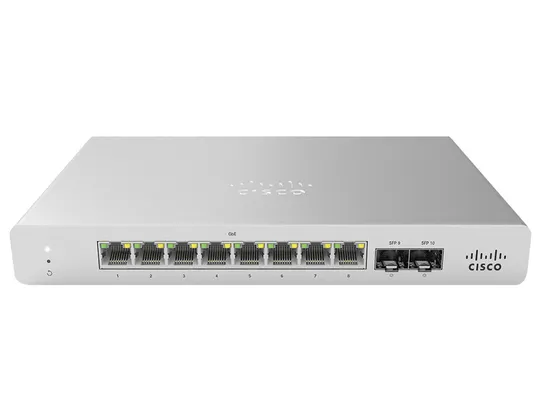

Cisco Meraki MS120-8LP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
MS120-8 LP includes 67W PoE/PoE+, 8 x 10/100/1000BASE-T Ethernet RJ45, 2 x SFP 1GbE uplink, 20 Gbps
3,899.00 د.إ
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Y |
Web-based management | Y |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP modules quantity | 2 |
Console port | RJ-45 |
Power connector | DC-in jack |
Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w |
10G support | N |
Broadcast storm control | Y |
Auto MDI/MDI-X | Y |
Spanning tree protocol | Y |
VLAN support | Y |
Number of VLANs | 4094 |
MAC address table | 16000 entries |
Switching capacity | 20 Gbit/s |
Jumbo frames support | Y |
Jumbo frames | 9600 |
DHCP features | DHCP server, DHCP snooping, DHCP client |
Access Control List (ACL) | Y |
IGMP snooping | Y |
BPDU filtering/protection | Y |
Root protection | Y |
Multicast support | Y |
Management protocols | SNMP |
Switching protocols | RSTP, STP, LLDP, CDP |
Rack mounting | N |
Product colour | Grey |
Wall mountable | Y |
Harmonized System (HS) code | 85176990 |
AC input voltage | 100 – 240 V |
AC input frequency | 47/63 Hz |
DC input voltage | 54 V |
Input current | 1.67 A |
Power consumption (typical) | 7 W |
Power consumption (max) | 16 W |
Power over Ethernet (PoE) | Y |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 5 – 95% |
Width | 222 mm |
Depth | 150 mm |
Height | 28 mm |
Weight | 1.25 kg |
Product family | Meraki |
