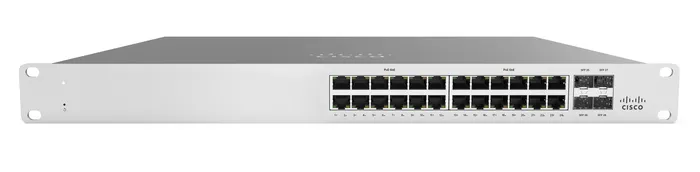

Cisco Meraki MS125-24 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey


MS125-24-HW, 24 x 10/100/1000BASE-T, 4 x 10G SFP+, RJ45, 128 Gbps

AED7,999.00

CLOUD-MANAGED ACCESS SWITCHES Cisco Meraki MS125 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs. INDUSTRY LEADING CLOUD MANAGEMENT Cloud management has a number of benefits that make it easier to build networks large and small

SKU: MS125-24-HW Categories: , Tag:
Feature Description
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
Console port RJ-45
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad
Port mirroring Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
VLAN support Y
MAC address table 32000 entries
Switching capacity 128 Gbit/s
Jumbo frames support Y
DHCP features DHCP client, DHCP server, DHCP snooping
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms 802.1x RADIUS, SNMP
Loop protection Y
BPDU filtering/protection Y
Multicast support Y
Management protocols IPv4, IPv6, SNMP
Switching protocols RSTP, STP, LLDP, CDP
Rack mounting Y
Form factor 1U
Product colour Grey
Certification CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS
Firmware upgradeable Y
Mean time between failures (MTBF) 1957381 h
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
AC input frequency 47/63 Hz
Power consumption (typical) 10 W
Power consumption (max) 26 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 45 °C
Operating relative humidity (H-H) 5 – 95%
Width 440 mm
Depth 250 mm
Height 44 mm
Weight 3.7 kg
Product family Meraki
