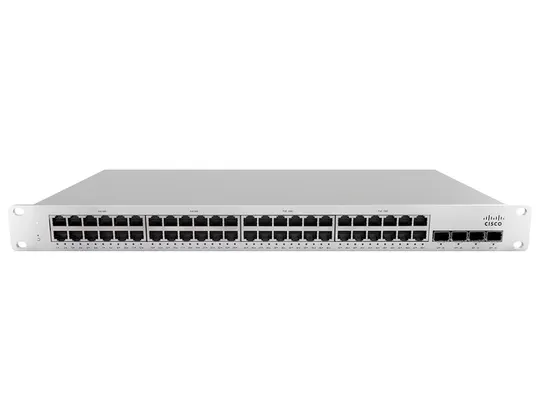

Cisco Meraki MS210-48FP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey


48 Ɨ Gigabit eternet ports, 4 Ɨ Gigabit SFP+, Layer 2, Fanless, 740W PoE+ budget

AED26,799.00

Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements. All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs. Hardware platform – Reliable platform with 24/7 Meraki Support – Clean lines and beautiful design – Low noise, fanless model available – Voice and video QoS – Non-blocking switch fabric Cloud management – Email alerts for switch management – Remote troubleshooting tools – Manage ports from a GUI-based dashboard – Zero-touch provisioning – Per-port and per-client usage statistics – Secure, user-scheduled firmware updates Switching capabilities – Layer 2 with Static Routes – DHCP Relay – 802.1X Authentication – DHCP Snooping – STP Enhancements – IPv4 and IPv6 ACLs
Category: Tag:
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
10G support N
Port mirroring Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 4094
MAC address table 32000 entries
Switching capacity 176 Gbit/s
Forwarding rate 127.98 Mpps
Number of queues 8
Jumbo frames support Y
Jumbo frames 9600
DHCP features DHCP relay
IGMP snooping Y
Security algorithms 802.1x RADIUS, SNMP
Loop protection Y
BPDU filtering/protection Y
Root protection Y
Management protocols IPv4, IPv6, SNMP
Routing protocols CDP
Rack mounting Y
Stackable Y
Form factor 1U
Product colour Grey
Certification CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
Mean time between failures (MTBF) 320555 h
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
AC input frequency 47/63 Hz
Power consumption (max) 882 W
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 740 W
Operating temperature (T-T) -5 – 50 °C
Operating relative humidity (H-H) 5 – 95%
Width 484.6 mm
Depth 340 mm
Height 43.8 mm
Weight 4.37 kg
Screws included Y
Product family Meraki
