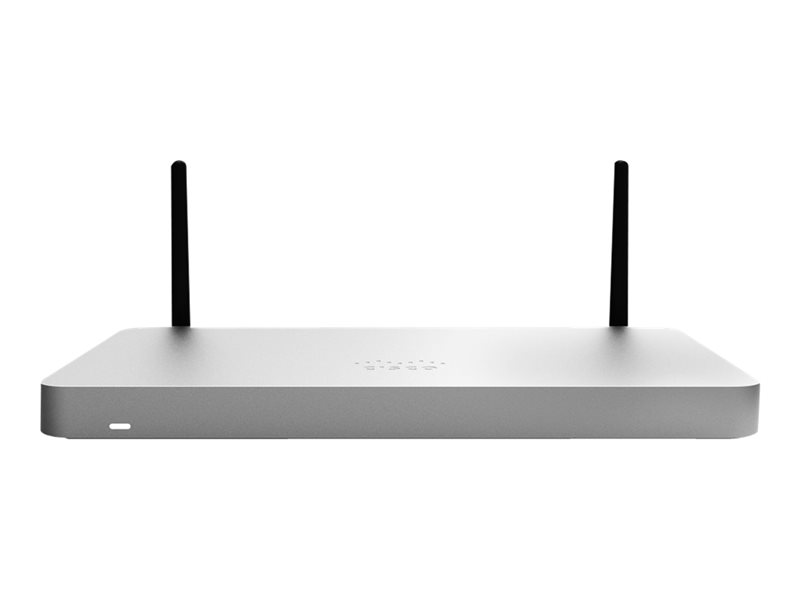

Cisco Meraki MX68W – security appliance – Wi-Fi 5


Cisco Meraki MX68W – Security appliance – 10 ports – 1GbE – Wi-Fi 5 – 2.4 GHz, 5 GHz – desktop

5,299.00 د.إ

Lockdown your network with the Cisco Meraki MX68W cloud-managed security & SD-WAN appliance that has 802.11ac Wave 2 Wi-Fi. Ideal for small retail branches or clinics, this device can routinely support up to 50 users and has a stateful firewall throughput of up to 450 Mbps. It allows a maximum of 50 simultaneous VPN sessions for absolutely secure data transfer and includes five Gigabit Ethernet interfaces so that you can connect a variety of devices to it.

Since the MX is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of security and network services including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your business can use a central location to set up its retail outlets or clinics without having to travel. Template-based multi-network management allows you to quickly set up profiles and settings across thousands of devices to ensure it scales easily. Monitoring and reporting systems ensure you get email alerts that inform you of utilization metrics, and comprehensive changelogs make tracing modifications very quick.

Quickly secure your network with the intelligent WAN that includes policy-based routing and dynamic VPN path selection, and it has a variety of application-layer protocols and systems that ensure only authorized visitors get in. Threat management solutions include content filtering, intrusion prevention using a PCI-compliant IPS sensor, identity-based policies, and Advanced Malware Protection from Cisco for maximum protection. An enhanced CPU and plenty of memory ensure this Cisco Meraki cloud-managed security & SD-WAN appliance can process all the information flowing through it rapidly.

The MX68W also includes 12 ports, including 2 GbE RJ45 WAN interfaces, 10 GbE RJ45 LAN interfaces, and 2 PoE+ for downstream access points and switches.

SKU: MX68W-HW Category: Tag:
General
Device Type Security appliance
Built-in Devices Modem
Width 11.2 in
Depth 7 in
Height 1.1 in
Weight 2.6 lbs
Networking
Form Factor Desktop
Ports Qty 10
Connectivity Technology Wireless, wired
Data Transfer Rate 1.3 Gbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol L2TP, IPSec, PPPoE, DHCP
Routing Protocol Static IP routing, MPLS
Remote Management Protocol HTTP
Frequency Band 2.4 GHz, 5 GHz
Performance
Firewall throughput 450 Mbps
VPN throughput 200 Mbps
Advanced security throughput 300 Mbps
Capacity
Maximum number of users 50
Maximum number of configured SSIDs 4
Features
Firewall protection Yes
DHCP support Yes
NAT support Yes
Load balancing Yes
Layer 7 switching Yes
VLAN support Yes
Traffic shaping Yes
Content filtering Yes
Intrusion Detection System (IDS) Yes
Intrusion Prevention System (IPS) Yes
Firmware upgradable Yes
Wall mountable Yes
IPSec Virtual Private Network (VPN) Yes
Quality of Service (QoS) Yes
MPLS VPN Yes
3G/4G USB Dongle Support Yes
Static routing Yes
802.1x authentication Yes
Link Aggregation Yes
VPN client Yes
IP Security (IPSec) support Yes
DMZ support Yes
Encryption Algorithm
WPA Yes
WPA-PSK Yes
WPA2-Enterprise Yes
WEP Yes
Authentication Method
Radio Service Set ID (SSID) Yes
Compliant Standards
IEEE 802.11b Yes
IEEE 802.11a Yes
IEEE 802.11g Yes
IEEE 802.1x Yes
IEEE 802.11n Yes
IEEE 802.3at Yes
IEEE 802.11ac Yes
Antenna
Antenna External detachable
Antenna Qty 2
Directivity Omni-directional
Communications
Cellular Protocol LTE
Expansion / Connectivity
Interfaces 2 x 1000Base-T – RJ-45 (WAN) ¦ 8 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 2 x antenna – RP-SMA
Miscellaneous
Compliant Standards C-Tick, CB, IC, FCC, RoHS, CISPR, IPsec/IKE
Power
Power Over Ethernet (PoE) Supported PoE+
Power Device External power adapter
Installed Qty 1
Max Supported Qty 1
Power Consumption Operational 89 Watt
Power Provided 100 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95%
