Overview

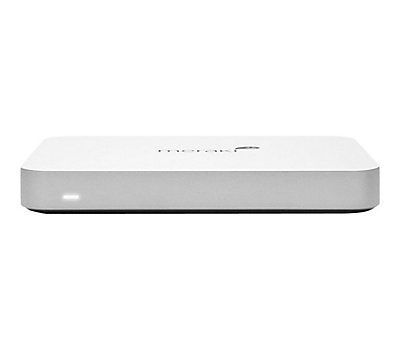

100% Cloud Managed Teleworker Gateway

Highlights
-
HARDWARE
-
- 4 PORTS FOR PRINTERS, PHONES, AND OTHER DEVICES
- 1 GBE WAN PORT, 4 GBE LAN PORTS
- 3G / 4G FAILOVER VIA USB MODEM
- SLEEK, LOW PROFILE DESIGN
-
WIRELESS
-
- DUAL-CONCURRENT 802.11N RADIOS
- 2×2 MIMO, UP TO 600 MBPS DATA RATE
- SUPPORTS UP TO 4 SSIDS
-
TRAFFIC SHAPING AND APPLICATION MANAGEMENT
-
- LAYER 7 APPLICATION VISIBILITY AND TRAFFIC SHAPING
- APPLICATION PRIORITIZATION
-
TELEWORKER GATEWAY SERVICES
-
- STATEFUL FIREWALL SEPARATES CORPORATE AND PERSONAL TRAFFIC
- EXTEND VOIP PHONES OVER WAN
- AUTO VPN™ SELF-CONFIGURING SITE-TO-SITE VPN
- ACCESS CORPORATE HQ VIA SITE-TO-SITE VPN
-
CLOUD-BASED CENTRALIZED MANAGEMENT
-
- MANAGED CENTRALLY OVER THE WEB
- CLASSIFIES APPLICATIONS, USERS AND DEVICES
- ZERO-TOUCH, SELF-PROVISIONING DEPLOYMENTS
Specification
Interfaces
- WAN: 1 × 1 GbE
- LAN: 4 × 1 GbE
- USB: 1 × USB 2.0 (for 3G/4G failover)
Network and Security Services
- Stateful firewall, 1:1 NAT, DMZ
- Auto VPN™ self-configuring site-to-site VPN
- Client VPN (IPSec L2TP), limit 2 authorized users (with Meraki-hosted authentication only)
- VLAN and DHCP services
- Static routing
- User and device quarantine
Integrated Wireless
- 4 SSIDs
- Dual-radio: 1 × 802.11b/g/n (2.4 GHz), 1 × 802.11a/n (5 GHz)
- Max data rate 600 Mbit/s
- 4 × interal dipole antennas (gain: 3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz)
- WPA2-PSK authentication
- Regulatory: FCC (US), IC (Canada), C-Tick (Australia / New Zealand), RoHS
Monitoring and Reporting
- Throughput, connectivity monitoring, and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilization metrics
- Syslog integration
Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting over the web
- Aggregated event logs with instant search
WAN Performance Management
- Automatic Layer 3 failover (including VPN connections)
- Application level (Layer 7) traffic analysis and shaping
Management
- Managed via the web using the Meraki dashboard
- Single pane-of-glass management of wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Centralized policy management
- Org-level two-factor authentication and single sign-on
- Role-based adminstration with change logging and alerts
Performance
- Stateful firewall throughput: 50 Mbps
- VPN throughput: 10 Mbps
- Recommended for teleworker (up to 5 users)
Physical and Environmental Specifications
- Dimensions: 6.46″ × 4.55″ × 1.14″ (164mm × 116mm × 29mm)
- Weight: 0.9 lbs (0.408 kg)
- Power: single 18W (12 V / 1.5 A) power supply included
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
- Desktop or wall mount (all standard mounting hardware included)
- Kensington lock hard point
Regulatory
- FCC (US)
- CB (IEC)
- CISPR (Australia / New Zealand)
Ordering Information
- Available with Enterprise license only
