Network Adapters

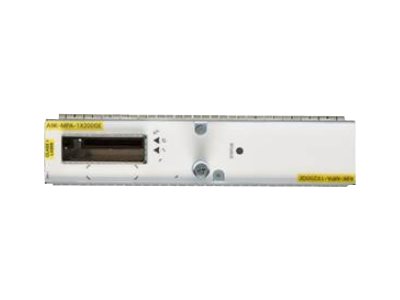

Cisco Modular Port Adapter – expansion module – 200 Gigabit Ethernet x 1
Cisco Modular Port Adapter – Expansion module – 200 Gigabit Ethernet x 1 – for ASR 9006, 9010, 9904, 9906, 9910, 9912, 9922
781,099.00 د.إ
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 200 Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 200 Gigabit Ethernet |
| Data Transfer Rate | 200 Gbps |
| Features | Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV) |
| Compliant Standards | IEEE 802.3ah, IEEE 802.1ag |
| Expansion / Connectivity |
| Interfaces | 1 x 200Gb Ethernet – CFP2 |
| Miscellaneous |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, CSA C22.2 No. 60950-1, BSMI Class A, GR-1089-CORE, EN 300 386, ITU Y.1731 |
| Software / System Requirements | OS Required: Cisco IOS XR 6.6.2 |
| Dimensions & Weight |
| Width | 6.3 in |
| Depth | 6.7 in |
| Height | 1.4 in |
| Weight | 2.4 lbs |
| Manufacturer Warranty | Service & Support |
| Environmental Parameters |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
| Compatibility Information | Designed For: Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9906, 9906 TH, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2 |
