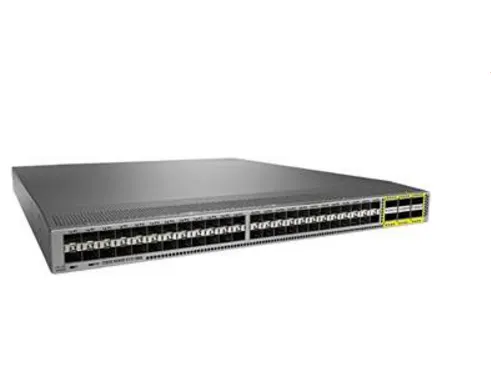

Cisco N3K-C3172PQ-10GE network switch Managed L2/L3 1U Grey


Nexus 3172PQ, 48 SFP+ and 6 QSFP+ ports

AED127,999.00

Highlights

The Cisco NexusĀ® 3172PQ, 3172TQ, 3172TQ-32T, 3172PQ-XL, and 3172TQ-XL Switches are dense, high-performance, 10- and 40-Gbps Layer 2 and 3 switches that are members of the Cisco Nexus 3100 switch platform. All switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. The Cisco Nexus 3172 switches run the industry-leading CiscoĀ® NX-OS Software operating system, which helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. These switches also support forward and reverse airflow (port-side exhaust and port-side intake) schemes with AC and DC power inputs.

Category: Tag:
Feature Specification
10G support Y
Spanning tree protocol Y
VLAN support Y
Virtual LAN features Private VLAN
Number of VLANs 4096
MAC address table 288000 entries
Switching capacity 1400 Gbit/s
Jumbo frames 9216
Access Control List (ACL) Y
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Grey
Internal memory 8000 MB
Noise level 76.7 dB
Power consumption (typical) 143 W
Power consumption (max) 293 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Width 439 mm
Depth 505 mm
Height 44 mm
Switch type Managed
Switch layer L2/L3
MIB support Y
Installed SFP+ modules quantity 48
Installed QSFP+ modules quantity 6
Networking standards IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3z
