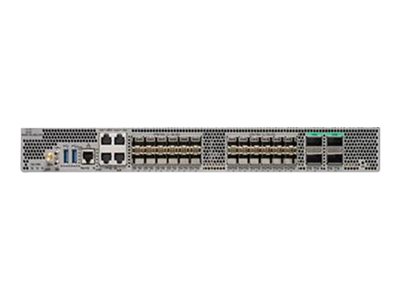

Cisco Network Convergence System 540 Fronthaul Aggregation – router – rack-mountable


Tech overview

Cisco Network Convergence System 540 Fronthaul Aggregation – Router – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN, CPRI – rack-mountable

335,599.00 د.إ

The Cisco Network Convergence Systems 540 Fronthaul Routers (NCS540) are key elements of the Cisco Converged SDN Transport architecture. The solution and the routers are designed to meet and exceed stringent bandwidth, latency, and scalability performance demands of 5G now and in the foreseeable future. This solution simplifies the mobile network architecture end to end and significantly reduces operator TCO.

The Cisco Network Convergence Systems 540 Fronthaul Router portfolio is fully programmable, permitting customers to extend xHaul capabilities as specifications continue to evolve. They are based on high- performance, low-latency, next-generation Application Specific Integrated Circuits (ASICs) extended with a Field-Programmable Gate Array (FPGA) that permits the flexibility for quickly adapting to evolving radio interface processing specifications for CPRI, eCPRI, and Radio over Ethernet (ROE). Cisco has built these platforms with requisite hardware resources to permit operators to add RAN functions in a hosted model leveraging the built-in powerful FPGA. Leveraging a FPGA-enhanced architecture over a fixed ASIC pipeline, the Cisco Fronthaul Router product family offers the flexibility required to address both short-term and long-term mobile transport requirements.

These fronthaul routers are extensions of the comprehensive Cisco Network Convergence Systems Router portfolio designed for cost-effective delivery of next-generation services and applications. As such these routers are temperature-hardened, high-throughput, small form factor, low-power-consumption devices suitable for a number of deployments and configurations. They are powered by the industry-leading carrier-class version of Cisco IOS XR Software designed for operational efficiency and service agility.

Cisco IOS XR Software offers advanced features such as programmability, application awareness, network visibility, and automation. The Cisco NCS 540 series of routers is an intelligent converged access platform which enables service providers to deliver next-level business and entertainment experiences.

SKU: N540-FH-AGG-SYS Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Rack-mountable – 1U
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, CPRI
Performance
Latency < 10 µs
Throughput 900 Gbps
Jumbo Frame Support Yes
Network / Transport Protocol RSVP, DHCP, IPv4, IPv6
Routing Protocol IS-IS, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), RSVP, Two-Way Active Measurement Protocol (TWAMP), MBGP, mLDP, mVPN
Remote Management Protocol SSH, CLI, NETCONF, gRPC, ICMP, DHCP, JSON, TACACS+, GPB, XML
Authentication Method Secure Shell (SSH), TACACS+
Features
Weighted Random Early Detection (WRED)
Quality of Service (QoS)
LACP support
DHCP relay
Management Information Base (MIB)
Precision Time Protocol (PTP)
Virtual Private LAN Service (VPLS)
Label Distribution Protocol (LDP)
Ethernet Virtual Private Network (EVPN)
iPXE
Fast Reroute (FRR)
Authentication, Authorization and Accounting (AAA)
Virtual Output Queue (VOQ)
Layer 2 VPN (L2VPN) support
Synchronous Ethernet (SyncE)
Zero-touch provisioning (ZTP)
Switched Port Analyzer (SPAN)
Integrated Routing and Bridging (IRB)
Encapsulated Remote SPAN (ERSPAN)
Targeted LDP (T-LDP)
Loop-free alternate (LFA)
Link Aggregation Group (LAG)
Bridge Virtual Interface (BVI)
MPLS LSR support
Cisco Discovery Protocol (CDP)
Bridge Domains (BD)
Ethernet Flow Point (EFP)
MPLS LER support
EVPN Virtual Private Wire Service (VPWS)
Compliant Standards
IEEE 802.1Q
IEEE 802.3ad (LACP)
IEEE 802.1ab (LLDP)
ITU-T Y.1731
ITU-T G.8032
IEEE 1588-2008
ITU-T G.8265.1
ITU-T G.8275.1
ITU-T G.8275.2
MEF 3.0
IEEE 802.1Qbu
CISPR 22 Class A
CISPR 24
EN 61000-3-2
EN 61000-3-3
EN55024
AS/NZS 60950-1
ICES-003 Class A
UL 60950-1 Second Edition
RoHS 6/6
GB 4943
Directive 2004/108/EC
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
Directive 2006/95/EC
GR-1089-CORE
VCCI Class A
GR-63-CORE
KN22 Class A
EN 55022 Class A
FCC CFR47 Part 15 B Class A
CNS 13438 Class A
CAN/CSA C22.2 No. 60950-1 Second Edition
EN 300 386
KN 61000-4
AS/NZS CISPR22 Class A
ETS/EN 300 119 Part 4
GR-3108-CORE class 2
ITU-T G.8273.2 Class B
ITU-T G.8273.2 Class C
eCPRI
ETS/EN 300 753
ETS/EN 300 019 1.2
ETS/EN 300 019 2.3
ETS/EN 300 019 3.2
Processor
1 x 1.7 GHz
RAM
8 GB
Hard Drive
32 GB
Built-in Devices
GNSS receiver
Expansion / Connectivity
Interfaces 18 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet, CPRI: 6 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet, 4 x 100Gb Ethernet
Power
Power Device Internal power supply – hot-plug
Power Redundancy Yes
Installed Qty 2 (max)
Power Consumption Operational 675 Watt
Dimensions & Weight
Width 17.5 in
Depth 22.8 in
Height 1.7 in
Weight 24.91 lbs
