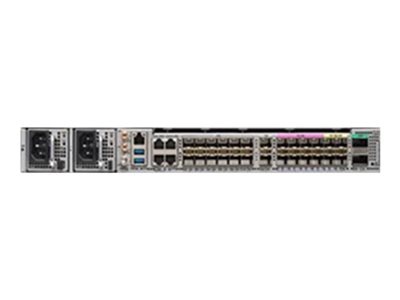

Cisco Network Convergence System 540 Fronthaul Cell Site – router – rack-mountable


Tech overview

Cisco Network Convergence System 540 Fronthaul Cell Site – Router – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN, CPRI – rack-mountable

154,099.00 د.إ

The Cisco Network Convergence Systems 540 Fronthaul Routers (NCS540) are key elements of the Cisco Converged SDN Transport architecture. The solution and the routers are designed to meet and exceed stringent bandwidth, latency, and scalability performance demands of 5G now and in the foreseeable future. This solution simplifies the mobile network architecture end to end and significantly reduces operator TCO.

The Cisco Network Convergence Systems 540 Fronthaul Router portfolio is fully programmable, permitting customers to extend xHaul capabilities as specifications continue to evolve. They are based on high- performance, low-latency, next-generation Application Specific Integrated Circuits (ASICs) extended with a Field-Programmable Gate Array (FPGA) that permits the flexibility for quickly adapting to evolving radio interface processing specifications for CPRI, eCPRI, and Radio over Ethernet (ROE). Cisco has built these platforms with requisite hardware resources to permit operators to add RAN functions in a hosted model leveraging the built-in powerful FPGA. Leveraging a FPGA-enhanced architecture over a fixed ASIC pipeline, the Cisco Fronthaul Router product family offers the flexibility required to address both short-term and long-term mobile transport requirements.

These fronthaul routers are extensions of the comprehensive Cisco Network Convergence Systems Router portfolio designed for cost-effective delivery of next-generation services and applications. As such these routers are temperature-hardened, high-throughput, small form factor, low-power-consumption devices suitable for a number of deployments and configurations. They are powered by the industry-leading carrier-class version of Cisco IOS XR Software designed for operational efficiency and service agility.

Cisco IOS XR Software offers advanced features such as programmability, application awareness, network visibility, and automation. The Cisco NCS 540 series of routers is an intelligent converged access platform which enables service providers to deliver next-level business and entertainment experiences.

SKU: N540-FH-CSR-SYS Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Rack-mountable – 1U
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, CPRI
Performance
Latency < 10 µs
Throughput 300 Gbps
Jumbo Frame Support Yes
Network / Transport Protocol RSVP, DHCP, IPv4, IPv6
Routing Protocol IS-IS, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), RSVP, Two-Way Active Measurement Protocol (TWAMP), MBGP, mLDP, mVPN
Remote Management Protocol SSH, CLI, NETCONF, gRPC, ICMP, DHCP, JSON, TACACS+, GPB, XML
Authentication Method Secure Shell (SSH), TACACS+
Features
Weighted Random Early Detection (WRED) Yes
Quality of Service (QoS) Yes
LACP support Yes
DHCP relay Yes
Management Information Base (MIB) Yes
Precision Time Protocol (PTP) Yes
Virtual Private LAN Service (VPLS) Yes
Label Distribution Protocol (LDP) Yes
Ethernet Virtual Private Network (EVPN) Yes
iPXE Yes
Fast Reroute (FRR) Yes
Authentication, Authorization and Accounting (AAA) Yes
Virtual Output Queue (VOQ) Yes
Layer 2 VPN (L2VPN) support Yes
Synchronous Ethernet (SyncE) Yes
Zero-touch provisioning (ZTP) Yes
Switched Port Analyzer (SPAN) Yes
Integrated Routing and Bridging (IRB) Yes
Encapsulated Remote SPAN (ERSPAN) Yes
Targeted LDP (T-LDP) Yes
Loop-free alternate (LFA) Yes
Link Aggregation Group (LAG) Yes
Bridge Virtual Interface (BVI) Yes
MPLS LSR support Yes
Cisco Discovery Protocol (CDP) Yes
Bridge Domains (BD) Yes
Ethernet Flow Point (EFP) Yes
MPLS LER support Yes
EVPN Virtual Private Wire Service (VPWS) Yes
Compliant Standards
IEEE 802.1Q Yes
IEEE 802.3ad (LACP) Yes
IEEE 802.1ab (LLDP) Yes
ITU-T Y.1731 Yes
ITU-T G.8032 Yes
IEEE 1588-2008 Yes
ITU-T G.8265.1 Yes
ITU-T G.8275.1 Yes
ITU-T G.8275.2 Yes
MEF 3.0 Yes
IEEE 802.1Qbu Yes
CISPR 22 Class A Yes
CISPR 24 Yes
EN 61000-3-2 Yes
EN 61000-3-3 Yes
EN55024 Yes
AS/NZS 60950-1 Yes
ICES-003 Class A Yes
UL 60950-1 Second Edition Yes
RoHS 6/6 Yes
GB 4943 Yes
Directive 2004/108/EC Yes
EN 60950-1 Second Edition Yes
IEC 60950-1 Second Edition Yes
Directive 2006/95/EC Yes
GR-1089-CORE Yes
VCCI Class A Yes
GR-63-CORE Yes
KN22 Class A Yes
EN 55022 Class A Yes
FCC CFR47 Part 15 B Class A Yes
CNS 13438 Class A Yes
CAN/CSA C22.2 No. 60950-1 Second Edition Yes
EN 300 386 Yes
KN 61000-4 Yes
AS/NZS CISPR22 Class A Yes
ETS/EN 300 119 Part 4 Yes
GR-3108-CORE class 2 Yes
ITU-T G.8273.2 Class B Yes
ITU-T G.8273.2 Class C Yes
eCPRI Yes
ETS/EN 300 753 Yes
ETS/EN 300 019 1.2 Yes
ETS/EN 300 019 2.3 Yes
ETS/EN 300 019 3.2 Yes
Processor
1 x 1.7 GHz
RAM
8 GB
