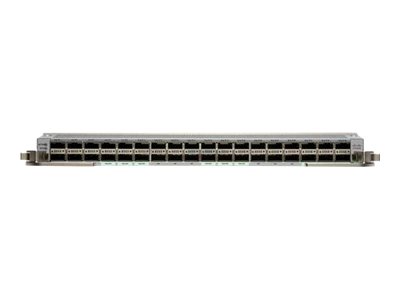

Cisco Network Convergence System 5500 Series Base Line Card – expansion module – 100 Gigabit Ethernet x 18 + 40 Gigabit QSFP+ x 18

Add to Wishlist

Cisco Network Convergence System 5500 Series Base Line Card – Expansion module – 100 Gigabit Ethernet x 18 + 40 Gigabit QSFP+ x 18 – with (NC55P-CRAGR-1818T) NCS 5500 Core and Aggregation Lic, (NC55-18H18F-LIC) NCS 5500 36X40G Base Right to Use License – for Network Convergence System 5501, 5501 SE Chassis, 5502, 5502 Scale Chassis, 5508

687,999.00 د.إ

Add to Wishlist
General
Device Type Expansion module
Form Factor Plug-in module
Bundled with (NC55P-CRAGR-1818T) NCS 5500 Core and Aggregation Lic, (NC55-18H18F-LIC) NCS 5500 36X40G Base Right to Use License
Networking
Ports 100 Gigabit Ethernet x 18 + 40 Gigabit QSFP+ x 18
Connectivity Technology Wired
Data Link Protocol 40 Gigabit Ethernet, 100 Gigabit Ethernet
Capacity Jumbo frame size: 9216
Remote Management Protocol SNMP 3, SSH
Features Layer 3 switching, RPL support, MPLS support, IPv6 support, VRRP support, ACL support, QoS, ECMP, BFD, LACP support, DSCP support, OSPF, iPXE, NTP, EoMPLS, L3VPN support, ZTP, IS-IS
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386
Expansion / Connectivity
Interfaces 18 x 40Gb Ethernet/100Gb Ethernet – QSFP28/QSFP+ <br> 18 x 40Gb Ethernet – QSFP28/QSFP+
Power
Power Consumption Operational 329 Watt
Dimensions & Weight
Width 16.9 in
Depth 17 in
Height 1.7 in
Weight 14 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
Compatibility Information
Designed For Cisco Network Convergence System 5501, 5501 SE Chassis, 5502, 5502 Scale Chassis, 5508
