Network Adapters

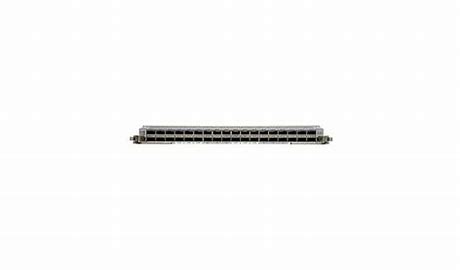

Cisco Network Convergence System 5500 Series Base Scale Datacenter Line Card – expansion module – 100 Gigabit Ethernet QSFP x 36
Cisco Network Convergence System 5500 Series Base Scale Datacenter Line Card – Expansion module – 100 Gigabit Ethernet QSFP x 36 – for Network Convergence System 5501, 5502, 5502 Scale Chassis, 5508
AED492,099.00
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 100 Gigabit Ethernet QSFP x 36 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Capacity | IPv4 routes: 256000 ¦ IPv6 routes: 64000 |
| Features | MPLS support, ACL support, QoS, MACsec support |
| Compliant Standards | IEEE 802.1ae |
| Expansion / Connectivity |
| Interfaces | 36 x 100Gb Ethernet – QSFP+ |
| Miscellaneous |
| Encryption Algorithm | DES, AES |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, AS/NZS, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4, EN 300386 |
| Power |
| Power Consumption Operational | 1100 Watt |
| Dimensions & Weight |
| Width | 16.9 in |
| Depth | 17.1 in |
| Height | 1.7 in |
| Weight | 15.32 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Compatibility Information |
| Designed For | Cisco Network Convergence System 5501, 5502, 5502 Scale Chassis, 5508 |
