Routers

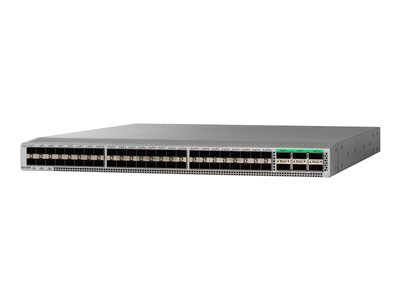

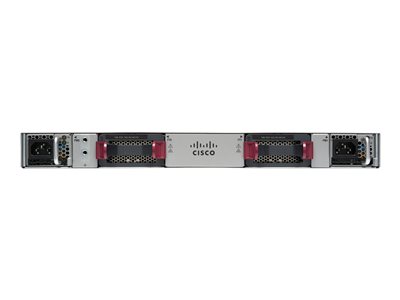

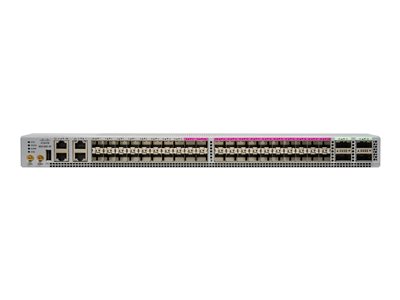

Cisco Network Convergence System 5501 Flexible Consumption – router – rack-mountable
Tech overview
Cisco Network Convergence System 5501 Flexible Consumption – Router – 40 Gigabit LAN, 100 Gigabit Ethernet – rack-mountable – for Network Convergence System 5501 SE Chassis
AED395,499.00
The Network Convergence System (NCS) 5500 Series offers industry-leading density of routed 100 GE ports for high-scale WAN aggregation. It is designed to efficiently scale between data centers and large enterprise, web, and service provider WAN and aggregation networks.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Throughput: 800 Gbps Ā¦ Capacity: FIB entries up to 1,000,000 Ā¦ Jumbo Frame Support: 9216 bytes |
| Routing Protocol | IS-IS, BGP, HSRP, VRRP, OSPFv2, OSPFv3, ECMP, IS-ISv6, MPLS |
| Remote Management Protocol | SNMP, SNMP 3, SSH |
| Authentication Method | TACACS+ |
| Features | Layer 3 switching, RPL support, ACL support, BFD, LACP support, LACP, MIB, static routing, CoS, DSCP support, LDP, iPXE, EoMPLS |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
| Processor | 1 x 2 GHz |
| Expansion / Connectivity | |
| Interfaces | 48 x 10Gb Ethernet – SFP/SFP+ Ā¦ 6 x 100Gb Ethernet – QSFP28/QSFP+ Ā¦ Console: 1 x RJ-45 Ā¦ Management: 2 x RJ-45 |
| Power | |
| Power Device | Internal power supply (not installed) – hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 2 (max) |
| Miscellaneous | Included Accessories: Accessory kit |
| Software / System Requirements | OS Required: Cisco IOS XR 6.1.1 |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 21.7 in |
| Height | 1.7 in |
| Weight | 22.8 lbs |
