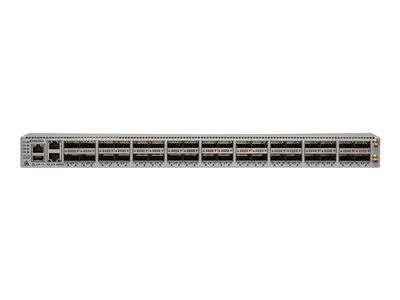

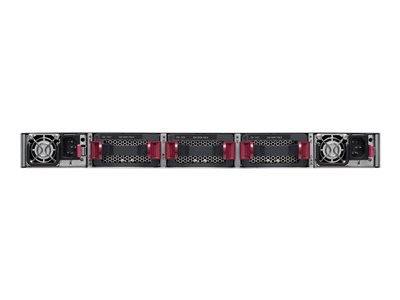

Cisco Network Convergence System 55A1 Flexible Consumption – router – rack-mountable
Tech overview
Cisco Network Convergence System 55A1 Flexible Consumption – Router – 100 Gigabit Ethernet – rack-mountable
AED1,702,399.00
Cisco designed the advanced IOS-XR Flexible Consumption Model to specifically address customer outcomes and help customers rapidly deploy innovative modern network solutions. The Flexible Consumption Model leverages the carrier-class IOS-XR Software to offer customers the ability to reduce upfront capital, simplify operations, utilize capital efficiently, and protect investment.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Performance | Throughput: 3.6 Tbps ¦ Route scale: up to 1M FIB entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IS-IS, BGP, HSRP, OSPFv2, static IP routing, OSPFv3, ECMP, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 3, SSH |
| Encryption Algorithm | AES |
| Authentication Method | TACACS+ |
| Features | RPL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, IP Precedence, LACP support, Management Information Base (MIB), MACsec support, Label Distribution Protocol (LDP), iPXE, 3 fan trays, Authentication, Authorization and Accounting (AAA), Ethernet over MPLS (EoMPLS), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Ethernet OAM, Zero-touch provisioning (ZTP), Segment Routing Traffic Engineering (SR-TE), DSCP Marking, MPLS OAM |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1ae, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
| Hard Drive | 128 GB |
| Expansion / Connectivity |
| Interfaces | LAN: 36 x 100Gb Ethernet – QSFP+ ¦ USB: 1 x ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 |
| Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Consumption Operational | 1450 Watt |
| Software / System Requirements |
| OS Required | Cisco IOS XR 6.3.1 |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 30 in |
| Height | 1.7 in |
| Weight | 33 lbs |
