Cisco Network Convergence System 55A1 – router – rack-mountable
Tech overview

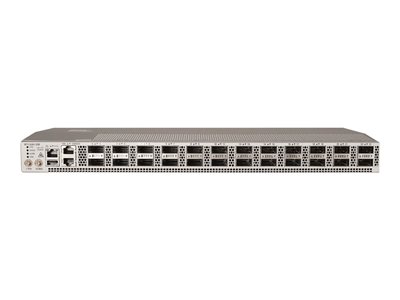

Cisco Network Convergence System 55A1 – Router – 100 Gigabit Ethernet – rack-mountable
1,791,299.00 د.إ
The Cisco Network Convergence System 5500 Series is built with features such as high port densities, deep packet buffering, and forwarding hardware optimized for these types of deployments. These systems provide functionality vital to both the Top of Rack (ToR) and spine or leaf roles common to modern spine-and-leaf architectures. Capabilities such as advanced packet classification, segment routing, ultra-wide ECMP, programmable network management and telemetry are added to the robust and mature features.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Performance | |
| Throughput | 3.6 Tbps |
| Route scale | Up to 1M FIB entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IS-IS, BGP, HSRP, OSPFv2, static IP routing, OSPFv3, ECMP, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 3, SSH |
| Encryption Algorithm | AES |
| Authentication Method | TACACS+ |
| Features | |
| RPL support | |
| Virtual Route Redundancy Protocol (VRRP) support | |
| Access Control List (ACL) support | |
| IP Precedence | |
| LACP support | |
| Management Information Base (MIB) | |
| MACsec support | |
| Label Distribution Protocol (LDP) | |
| iPXE | |
| 3 fan trays | |
| Authentication, Authorization and Accounting (AAA) | |
| Ethernet over MPLS (EoMPLS) | |
| Hierarchical Quality of Service (HQoS) | |
| Layer 3 VPN (L3VPN) support | |
| Ethernet OAM | |
| Zero-touch provisioning (ZTP) | |
| Segment Routing Traffic Engineering (SR-TE) | |
| DSCP Marking | |
| MPLS OAM | |
| Compliant Standards | |
| IEEE 802.1Q | |
| IEEE 802.3ad (LACP) | |
| IEEE 802.1ad | |
| IEEE 802.1ae | |
| CISPR 22 Class A | |
| CISPR 24 | |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN55024 | |
| AS/NZS 60950-1 | |
| ICES-003 Class A | |
| FCC CFR47 Part 15 | |
| UL 60950-1 Second Edition | |
| RoHS 6/6 | |
| GB 4943 | |
| Directive 2004/108/EC | |
| EN 60950-1 Second Edition | |
| IEC 60950-1 Second Edition | |
| Directive 2006/95/EC | |
| GR-1089-CORE | |
| VCCI Class A | |
| GR-63-CORE | |
| KN22 Class A | |
| EN 55022 Class A | |
| CNS 13438 Class A | |
| CAN/CSA C22.2 No. 60950-1 Second Edition | |
| EN 300 386 | |
| KN 61000-4 | |
| Hard Drive | 128 GB |
| Expansion / Connectivity | |
| Interfaces | LAN: 36 x 100Gb Ethernet – QSFP+, USB: 1 x, Console: 1 x RJ-45, Management: 1 x RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Consumption Operational | 1100 Watt |
| Software / System Requirements | |
| OS Required | Cisco IOS XR 6.3.1 |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 30 in |
| Height | 1.7 in |
| Weight | 33 lbs |
