Cisco Network Convergence System 55A2 – router – rack-mountable
Tech overview

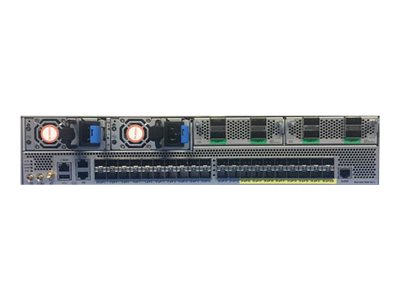

Cisco Network Convergence System 55A2 – Router – 10 GigE, 25 Gigabit LAN – front to back airflow – rack-mountable
AED201,699.00
The Cisco Network Convergence System 55A2 series routers are designed for cost-effective delivery of modern services. These routers are high capacity, compact form factor, low power consumption devices providing flexibility with modular bays. Modular and fixed ports on the chassis provides flexibility with options of different port types along with superior encryption support.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance |
| Throughput | 900 Gbps |
| Capacity |
| FIB entries | up to 1000000 |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol |
| Supported Protocols | IS-IS, BGP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol |
| Supported Protocols | SNMP 3, SSH |
| Authentication Method |
| Supported Method | TACACS+ |
| Features |
| Supported Features | RPL support, VRRP support, ACL support, QoS, LACP, MACsec support, LDP, iPXE, AAA, EoMPLS, L3VPN support, L2VPN support, ZTP, SR-TE, MPLS LSR support |
| Compliant Standards |
| Various Standards | IEEE, ITU-T, CISPR, EN, AS/NZS, ICES, UL, RoHS, GB, Directive, GR, VCCI, FCC CFR47, CNS, CAN/CSA, KN, CISPR, TCVN, ITU-T |
| RAM | 32 GB |
| Hard Drive | 128 GB |
| Expansion / Connectivity |
| Interfaces | 24 x 10Gb Ethernet, 16 x 25Gb Ethernet, Console: 1 x RJ-45, Management: 1 x RJ-45, USB: 1 x |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Power |
| Power Device | Internal power supply (not installed) – hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 2 (max) |
| Power Consumption Operational | 370 Watt |
| Miscellaneous | Included Accessories: 2 blank panels |
| Dimensions & Weight |
| Width | 17.3 in |
| Depth | 11 in |
| Height | 3.5 in |
| Weight | 20.5 lbs |
