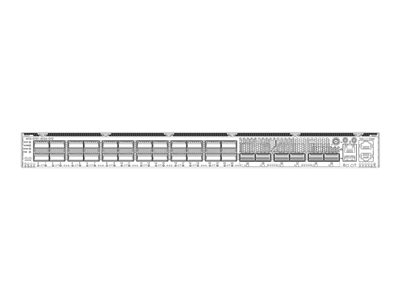

Cisco Network Convergence System 57B1 Fixed Base – router – rack-mountable


Tech overview

Cisco Network Convergence System 57B1 Fixed Base – Router – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN, 400 Gigabit LAN – front to back airflow – rack-mountable

AED961,999.00

With global data center and public/private cloud network traffic growing at more than 25 percent annually, network providers and hyperscalers alike are rapidly adopting 400GE as the basis for their mass-scale core and aggregation networks. The Cisco Network Convergence System 5700 Series builds on the success of previous Cisco NCS 5500 fixed systems by combining the latest in forwarding ASIC design with the advanced innovation of Cisco IOS XR7.

The Cisco NCS-57B1 Series is powered by an industry-leading, carrier-class 64-bit version of IOS XR7 (XR7) NOS designed on operational efficiency, optimized utilization, and service agility (evolved programmable network). Cisco IOS XR Software offers rich features such as iPXE boot, auto provisioning, and native support for third-party application hosting, machine-to-machine interface, telemetry, and flexible software package delivery.

SKU: NCS-57B1-6D24H-S Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Front to back airflow rack-mountable – 1U
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 400 Gigabit Ethernet
Performance
Throughput 4.8 Tbps
Route Scale Up to 2.7M FIB entries
Capacity QoS queues: 8
Jumbo Frame Support 9216 bytes
Network / Transport Protocol IPv4, IPv6
Routing Protocol
BGP, VRRP, OSPFv2, static IP routing, OSPFv3, ECMP, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), IS-ISv4
Remote Management Protocol
SNMP, SNMP 3, SSH, NETCONF, OAM, JSON, YANG, TACACS+, GPB, XML
Authentication Method
Secure Shell (SSH), TACACS+
Features
RPL support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, Management Information Base (MIB), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, Label Distribution Protocol (LDP), iPXE, Authentication, Authorization and Accounting (AAA), Ethernet over MPLS (EoMPLS), Layer 3 VPN (L3VPN) support, Synchronous Ethernet (SyncE), Zero-touch provisioning (ZTP), VLAN encapsulation, Segment Routing Traffic Engineering (SR-TE), VLAN trunking, hot swappable 5+1 fans, Media Access Control Security (MACsec), Ethernet Flow Point (EFP), Topology Independent Loop-Free Alternate (TI-LFA)
Compliant Standards
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, AS/NZS CISPR22 Class A, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 60950-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition
RAM 32 GB
Hard Drive 128 GB
Status Indicators Status
Expansion / Connectivity
Interfaces 6 x 400Gb Ethernet – QSFP-DD, 24 x 100Gb Ethernet – QSFP-DD, Management: 1 x RJ-45, Console: 1 x RJ-45, USB: 1 x
Power
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Installed Qty 2 (max)
Power Consumption Operational 500 Watt
Miscellaneous
MTBF 134,790 hours
Dimensions & Weight
Width 17.3 in
Depth 23.6 in
Height 1.7 in
Weight 29.06 lbs
