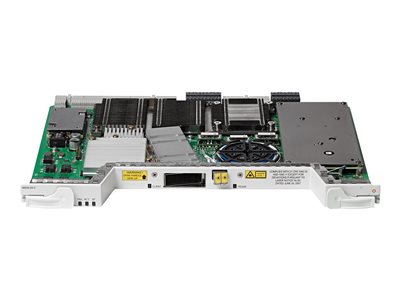

Cisco Network Convergence System Multi-Rate Line Card – expansion module – 100 Gigabit CPAK x 1
Cisco Network Convergence System Multi-Rate Line Card – Expansion module – 100 Gigabit CPAK x 1 – 1528.77-1566.72 nm – remanufactured – for P/N: NCS2002-SEC-K9, NCS2006-SEC-AC-K9, NCS2006-SEC-DC-K9, NCS2006-SEC-K9
AED611,199.00
The Cisco NCS 2000 100-Gbps DWDM Line Card with Soft Decision FEC is a module for the Cisco Network Convergence System 2000 Series (NCS 2000 Series) which transports 100 Gigabit Ethernet interfaces and services across metro, regional, and long haul dense wavelength division multiplexing (DWDM) optical networks.
The card features a pluggable client interface, allowing it to map the client or a signal from a tributary line card to a single DWDM line interface, providing transponder or muxponder capabilities. The client port supports the Cisco CPAK pluggable transceiver.
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 100 Gigabit CPAK x 1 |
| Connectivity Technology | Wired |
| Cabling Type | DWDM, Ethernet 100GBase-LR4, Ethernet 100GBase-SR10 |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 1528.77-1566.72 nm |
| Line Coding Format | DQPSK, BPSK, 16 QAM |
| Status Indicators | Fail, active, input, output |
| Features | AIS, SD FEC |
| Compliant Standards | ITU-T G.709 |
| Expansion / Connectivity |
| Interfaces | 1 x 100Gb Ethernet – CPAK ¦ 1 – LC – x 2 |
| Miscellaneous |
| MTBF | 116,052 hours |
| Compliant Standards | Laser Class 1, GR-1089-CORE, ITU-T G.709, GR-63-CORE, ITU-T G.691, G.975, GR-253-CORE, G.8021, G.7710, TR-NWT-000332, Issue 4, Method 1 |
| Pricing Type | Remanufactured |
| Power |
| Power Consumption Operational | 163 Watt |
| Dimensions & Weight |
| Weight | 3.97 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% (non-condensing) |
| Compatibility Information | Designed For P/N: NCS2002-SEC-K9, NCS2006-SEC-AC-K9, NCS2006-SEC-DC-K9, NCS2006-SEC-K9 |
