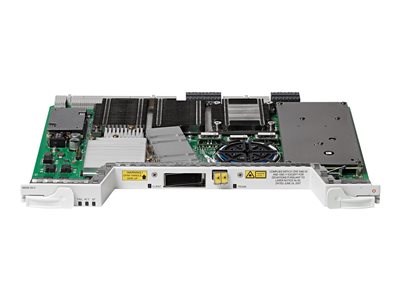

Cisco Network Convergence System Multi-Rate Line Card – Metro – expansion module – 100 Gigabit CPAK x 1
Cisco Network Convergence System Multi-Rate Line Card – Metro – Expansion module – 100 Gigabit CPAK x 1 – 1528.77-1566.72 nm – for Network Convergence System 2006 External Connections Unit, 2015 External Connections Unit
AED932,699.00
Simplify the integration and transport of 100 Gigabit Ethernet and Optical Transport Unit 4 (OTU-4) interfaces and services into enterprise and service provider optical networks with the Cisco NCS 2000 100-Gbps Coherent DWDM Trunk Card with CPAK Client Interface. The Cisco Network Convergence System 2000 Series (NCS 2000 Series) supports a wide variety of service line cards to efficiently aggregate and transport nearly any client signal over a metro, regional, or long haul DWDM infrastructure and offers full compatibility with the Cisco ONS 15454 MSTP.
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
|---|---|
| Ports | 100 Gigabit CPAK x 1 |
| Connectivity Technology | Wired |
| Cabling Type | DWDM, Ethernet 100GBase-LR4, Ethernet 100GBase-SR10 |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 1528.77-1566.72 nm |
| Line Coding Format | DQPSK, BPSK, 16 QAM |
| Status Indicators | Fail, active, input, output |
| Features | AIS(Alarm Indication Signal), Soft Decision Forward Error Correction (SD FEC) |
| Compliant Standards | ITU-T G.709 |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 100Gb Ethernet – CPAK ¦ 1 – LC – x 2 |
| Miscellaneous | |
|---|---|
| MTBF | 116,052 hours |
| Compliant Standards | Laser Class 1, GR-1089-CORE, ITU-T G.709, GR-63-CORE, ITU-T G.691, G.975, GR-253-CORE, G.8021, G.7710, TR-NWT-000332, Issue 4, Method 1 |
| Power | |
|---|---|
| Power Consumption Operational | 163 Watt |
| Dimensions & Weight | |
|---|---|
| Weight | 3.97 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% (non-condensing) |
| Compatibility Information | |
|---|---|
| Designed For | Cisco Network Convergence System 2006 External Connections Unit, 2015 External Connections Unit |
