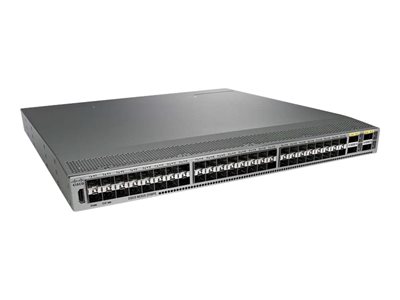

Cisco Nexus 2248PQ 10GE Fabric Extender – expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 + 40 Gigabit QSFP+ x 4

Add to Wishlist

Cisco Nexus 2248PQ 10GE Fabric Extender – Expansion module – 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 + 40 Gigabit QSFP+ x 4 – refurbished

AED47,399.00

Add to Wishlist

The Cisco Nexus 2248PQ provides 48 1 or 10 Gigabit Ethernet and Fiber Channel Over Ethernet (FCoE) Small Form-Factor Pluggable Plus (SFP+) server ports, and four QSFP+ (16 10 GE SFP+) uplink ports in a compact one-rack-unit (1 RU) form factor.

The combination of the Cisco Nexus 2248PQ and upstream Cisco Nexus 5000 series switches and Cisco Nexus 6000 series switches provides a cost-effective access layer and scalable strategy for 10 GE and FCoE at the server access layer. It also helps to enable a smooth migration to a 40 GE network fabric.

SKU: N2K-C2248PQF-RF 1 Category: Tag:
Category Specification
General
Device Type Expansion module
Form Factor Rack-mountable
Networking
Ports 10 Gigabit SFP+ / SFP (mini-GBIC) x 48 + 40 Gigabit QSFP+ x 4
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet
Performance Forwarding performance (full duplex): 320 Gbps; Forwarding performance: 160 Gbps
Capacity Jumbo frame size: 9216; ACL entries: 256
Remote Management Protocol SNMP 1, SNMP 2, RMON, SNMP 3, CLI
Status Indicators Port status, power, system
Features Auto-negotiation, VLAN support, Syslog support, WRR queuing, STP support, ACL support, QoS, Jumbo Frames support, DCB, MIB, CoS, tagged VLAN, redundant fans, vPC technology, hot swappable power supply, 3 fans, FCoE support, ISSU
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ae
Expansion / Connectivity
Interfaces 48 x 10GBase-X – SFP/SFP+; 4 x 40Gb Ethernet – QSFP+
Miscellaneous
Compliant Standards NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2006 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386
Pricing Type Refurbished
Power
Power Consumption Operational 175 Watt
Dimensions & Weight
Width 17.3 in
Depth 17.7 in
Height 1.7 in
Weight 17.64 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
